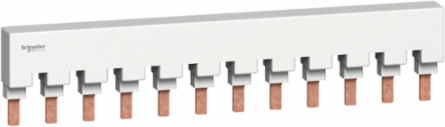

Schneider Electric M9XUP312 Multi9 Comb Busbar 12 Modules 115A 3L 18 mm Pitch

MPN: M9XUP312
PPN: SCH-M9XUP312
UNSPSC: 39121117

$130.95

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Multi9 product is an uncuttable horizontal comb busbar 12 modules for Multi9 C60BP. It is dedicated to (Line) installations. The distribution type is 3L. It is a set of 1device. The length is 216mm. The total number of modules of 18mm is 12. The Ue rated operational voltage is 277VAC (phase to neutral) and 480VAC (phase to phase). The Ui rated insulation voltage is 1000VAC. The color is light grey (RAL 7035). The degree of protection is IP20 with end-pieces and tooth covers. The pollution degree is 3. The resistance of the plastic to flames and to abnormal heat is 960°C within 30s conforming to IEC 60695-2-1. It complies with UL 508 standard.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany

Weight	167 g

Physical Attributes

Color	Light gray RAL 7035)

Complementary Attributes

Ie Rated Operational Current	115 A 40 °C
Ui Rated Insulation Voltage	1000 V AC 50/60 Hz UL 508

Ue Rated Operational Voltage	480 V AC 50/60 Hz Ph/Ph277 V AC 50/60 Hz Ph/N

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Carbon Footprint Of The Distribution Phase A4	0.03246676912226047, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0022529236319774053, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	3 kg CO2 eq., 3.19271106715138
Local Publishable Date	2025-07-09
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1922
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Commercial
Connection Pitch	18 mm
Distance Between Way	54 mm
Energy Efficiency Optimized	False
Insulation	insulated
Mounting Location	top tunnel type terminals
Number Of Ways	3 ways 3 L
Product Availability	Stock - Normally stocked in distribution facility
Range	Multi9
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	4 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Width Nominal	216 mm
Accessory / Separate Part Category	connection accessory
Customs Code	8536908585
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Carbon Footprint Of The End Of Life Phase C1 To C4	0.4 kg CO2 eq., 0.3514074151746351
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.8 kg CO2 eq., 0.8145159832948621
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Connector Type	tooth
Distribution Type	L1 L2 L3
Fire Resistance	960 °C 30 s ) IEC 60695-2-1
Lines Description	3L
Mounting Mode	horizontal
Poles Configuration For 1 Way	1 x 3P
Product Or Component Type	comb busbar
Returnability	Yes
Sustainable Packaging	No
Total Number Of 18 Mm Modules	12
Total Nb Of Modules 18 Mm	12
Data Source	extrapolated product
Certificate Agency	cULus
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Distribute electrical power to devices installed on a row of a final distribution board for 20 years.Distribute electrical power to devices installed on a row of a final distribution board for 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	67

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Halogene Performance	Halogen free plastic parts product
Toxic Heavy Metal Free	Yes
Carbon Footprint	4.393354158375115
Environmental Disclosure	ENVPEP2503006EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-04-01
Psr Version	PSR-0005-ed3-2023 06 06

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
9 Mm Pitches	24
Eu Rohs Directive	Compliant
Ip Degree Of Protection	IP20 with end-pieces and tooth covers
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2503006EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
