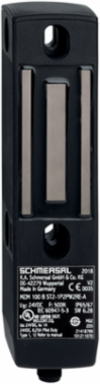

Schmersal 101211070 Solenoid Interlock MZM 100 B, 750 N Holding Force, 200 m Sensor Chain, IP65/IP67
- MPN: 101211070
- PPN: SCM-101211070
CAD
$1460.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Solenoid Interlock MZM 100 B, 750 N Holding Force, 200 m Sensor Chain, IP65/IP67
Features
- Actuator monitored
- Connector M12, 8-pole
- Power to lock
- Automatic latching
- Solenoid interlocks with innovating and unique operating principle
- 40 mm x 179 mm x 40 mm
- Electronic contact-free, coded system
- Thermoplastic enclosure
- Max. length of the sensor chain 200 m
- 3 LEDs to show operating conditions

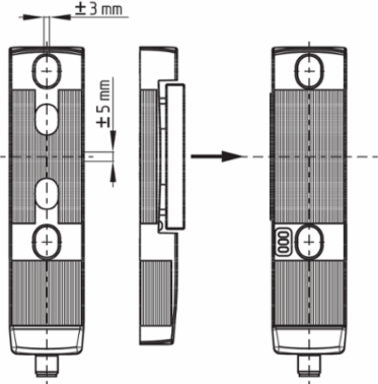

- Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
- Intelligent diagnosis
- Self-monitoring series-wiring
- Patented
Documentation & Downloads
Specifications
Electrical data - Safety digital inputs
- Designation, Safety inputs
- X1 and X2
- Current consumption at 24 V
- 5 mA
- Test pulse interval, minimum
- 100 ms
- Classification ZVEI CB24I, Source
- C1 | C2 | C3
Switching thresholds−3 V … 5 V (Low) | 15 V … 30 V (High)
Test pulse duration, maximum1 ms
Classification ZVEI CB24I, SinkC1
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- Current consumption with magnet ON, average
- 350 mA
- Rated operating voltage
- 24 VDC
- Required rated short-circuit current
- 100 A
- Time to readiness, maximum
- 4,000 ms
No-load supply current I100 mA
Current consumption with magnet ON, peak550 mA / 10 ms
Operating current1,100 mA
External wire and device fuse rating2 A gG
Switching frequency, maximum1 Hz
Note
- Note (General)
- As long as the actuating unit is applied to the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

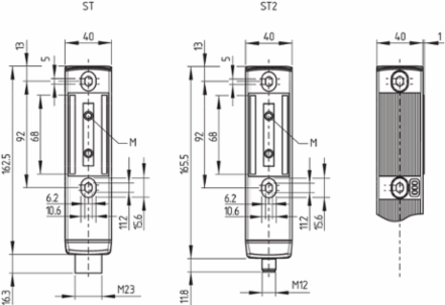

Mechanical data - Dimensions
- Length of sensor
- 40 mm
- Height of sensor
- 177.5 mm
Width of sensor40 mm

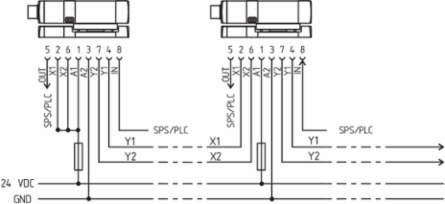

Pin assignment
- PIN 1
- A1 Supply voltage UB
- PIN 3
- A2 GND
- PIN 5
- OUT Diagnostic output
- PIN 7
- Y2 Safety output 2
PIN 2X1 Safety input 1
PIN 4Y1 Safety output 1
PIN 6X2 Safety input 2
PIN 8IN Solenoid control
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Electrical data - Magnet control
- Designation, Magnet control
- IN
- Current consumption at 24 V
- 10 mA
- Test pulse duration, maximum
- 5 ms
- Classification ZVEI CB24I, Sink
- C0
Switching thresholds-3 V … 5 V (Low) | 15 V … 30 V (High)
Magnet switch-on time100 %
Test pulse interval, minimum40 ms
Classification ZVEI CB24I, SourceC1 | C2 | C3
General data - Features
- Power to lock
- Yes
- Latching
- Yes
- Cross-circuit detection
- Yes
- Safety functions
- Yes
- Number of safety contacts
- 2
Actuator monitoredYes
Short circuit detectionYes
Series-wiringYes
Integral system diagnostics, statusYes
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
- Coding level according to EN ISO 14119
- Low
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Reaction time, maximum
- 150 ms
CodingUniversal coding
Working principleinductive
Gross weight700 g
Duration of risk, maximum150 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
Electrical data - Safety digital outputs
- Designation, Safety outputs
- Y1 and Y2
- Design of control elements
- short-circuit proof, p-type
- Leakage current I
- 0.5 mA
- Current, Utilisation category DC-13
- 0.25 A
- Test pulse duration, maximum
- 1 ms
- Classification ZVEI CB24I, Sink
- C1
Rated operating current (safety outputs)250 mA
Voltage drop U1 V
Voltage, Utilisation category DC-1324 VDC
Test pulse interval, typical1000 ms
Classification ZVEI CB24I, SourceC1
Safety classification - Interlocking function
- Performance Level, up to
- e
- PFH value
- 3.54 x 10⁻⁹ /h
- Mission time
- 20 Year(s)
Category4
Safety Integrity Level (SIL), suitable for applications in3
Ambient conditions
- Degree of protection
- IP65 | IP67
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, minimum
- 30 %
- Note (Relative humidity)
- non-condensing | non-icing
- Restistance to shock
- 30 g / 11 ms
- Permissible installation altitude above sea level, maximum
- 2,000 m
Ambient temperature-25 ... +55 °C
Storage and transport temperature, maximum+70 °C
Relative humidity, maximum95 %
Resistance to vibrations10 … 150 Hz, amplitude 0.35 mm / 5 g
Protection classIII
Mechanical data - Connection technique
- Termination
- Connector M12, 8-pole
- Note (length of the sensor chain)
- Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum200 m
Note (series-wiring)Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Electrical data - Diagnostic outputs
- Designation, Diagnostic outputs
- OUT
- Voltage drop U
- 2 V
- Current, Utilisation category DC-13
- 0.05 A
Design of control elementsshort-circuit proof, p-type
Voltage, Utilisation category DC-1324 VDC
Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "ON" S
- 0 mm
Assured switching distance "OFF" S1 mm
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Holding force, typically
- 750 N
- Latching force, minimum
- 30 N
- Type of the fixing screws
- 2x M6
Note (Mechanical life)Actuating speed ≤ 0.5 m/s | Operations for door weights ≤ 5 kg
Holding force, guaranteed500 N
Latching force, maximum100 N
Tightening torque of the fixing screws8 Nm
Accessory
- Recommendation (actuator)
- MZM 100-B1.1
Approvals - Standards
- Certificates
- TÜV | cULus | UKCA
Status indication
- Note (LED switching conditions display)
- Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
