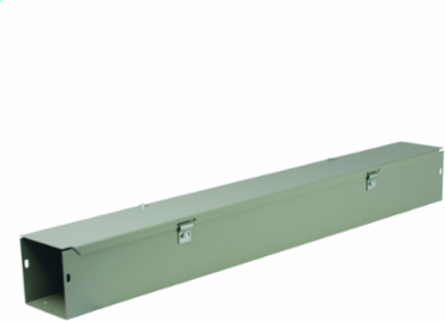

Wiegmann HS884NK N1 Hinged Wireway - No Knockouts 8X8X48 Carbon Steel - Gray

MPN: HS884NK
UPC: 786725610952
PPN: HBL-HS884NK
UNSPSC: 39131714

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$508.32/ EA

Qty:

Loading add to cart quantity...

Description

N1 Hinged Wireway - No Knockouts 8X8X48 Carbon Steel - Gray

Features

Bodies and covers are fabricated from 14 gauge steel. HS Series combination hinge/screw cover design offers easy access to open top for "lay-in" of wireway. Screws do not need to be removed to open top.

Specifications

Country of Origin: United States

Height: 8 in

Color: Ansi-61 Gray Smooth

Enclosure: Nema 1 Type Enclosure

Knockouts: No

Size: 48 in x 8 in x 8 in

Type: Wireway

Weight: 34 lb.

Enclosure Type: Nema 1 Type Enclosure

Material type: Carbon Steel

ARRA Compliant: Contact Manufacturer

Description - Invoice: WW,HC,SC,NOKO.CS,8"X8"X48"

Harmonization Code: 7326908688

Lead Time: 21 wk

Order Multiple: 1 EA

Stock Indicator: S - Shelf Stock

UL Listed: Yes

Base Unit of Measure: EA

Carton - Gross Weight per Pack: 34.000 lb.

Carton - Pack Description: Carton

Carton - Total Units: 1 EA

Pallet Length: 48.000 in

Pallet Width: 40.000 in

Dimensions48 in x 8 in x 8 in

ApplicationDesigned to protect electrical wiring in applications where dirt, dust, oil, and water are not serious problems. All sections are open on one side so wires and cable can be laid in along an entire wireway run.

Depth48 in

FinishPolyester Powder

Length48 in

StandardcULus

Width8 in

Cover TypeHinged Cover

Finish TypePolyester Powder

Nema Rating1

Class CodeP01

Freight Class Code12007000

Image Actual Or RepresentativeR

MSDS FlagNo

Returnable IndicatorNo

Sub Class CodeP01P014

MaterialCarbon Steel

BOX SIZE8.000x48.000x8.000 (in)

Carton - Number of Sub Packs1

Carton - SCC-14 Next Lower Level Sub Pack00786725610952

Pallet Height44.000 in

Pallet Weight970.000 lb.

Certifications

Buy American Compliant: Contact Manufacturer

EU RoHS Indicator: Yes

Certified ListedcULus

ListingsUL, CSA
