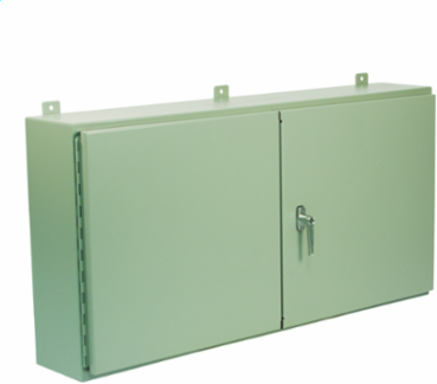

Wiegmann WA304810WF N12 Double Door Wall-Mount 30X48X10 Carbon Steel - Gray
- MPN: WA304810WF
- UPC: 786725349159
- PPN: HBL-WA304810WF
- UNSPSC: 39121302
CAD
$3459.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 Double Door Wall-Mount 30X48X10 Carbon Steel - Gray
Features
- Intended for use in housing electrical and electronic controls, instruments, components and associated wiring, these enclosures incorporate double-hinged doors which provide convenient access
- Designed for indoor use in protecting components from dust, dirt, oil and water.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Number of Doors (Fixed) | 2 |
| Color | Ansi-61 Gray Textured |
| Finish | Textured |
| Mounting | External Mounting Feet |
| Shape | Rectangle |
| Type | Enclosure |
| Weight | 127 lb. |
| Finish Type | Textured |
| Nema Rating | 12 |
| Class Code | P02 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P02P034 |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 30.000x10.000x48.000 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725349159 |
| Pallet Weight | 0.000 lb. |
| Depth | 10 in |
|---|---|
| Application | Intended for use in housing electronic controls, instruments, components and associated wiring. These enclosures incorporate hinged doors which provide convenient access. Designed for indoor use in protecting components from dust, dirt, oil and water. |
| Cubic Capacity | 14400 cu.in |
| Height | 30 in |
| NEMA Rating | 12 |
| Standard | cULus |
| Width | 48 in |
| Cover Type | Door |
| Mounting Type | External Mounting Feet |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | N12, 2DOOR,WM 30"X48"X10" |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Latches Type | Captivated Screws |
| Construction | Continuously Welded Seams |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 127.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
