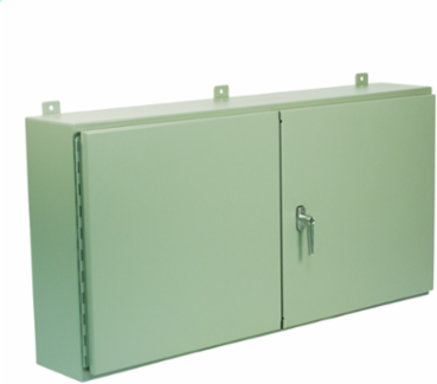

Wiegmann WA244808WF N12 Double Door Wall-Mount 24X48X8 Carbon Steel - Gray
Wiegmann WA244808WF N12 Double Door Wall-Mount 24X48X8 Carbon Steel - Gray
- MPN: WA244808WF
- UPC: 786725349050
- PPN: HBL-WA244808WF
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2371.37/ EA
Description
N12 Double Door Wall-Mount 24X48X8 Carbon Steel - Gray
Features
- Intended for use in housing electrical and electronic controls, instruments, components and associated wiring, these enclosures incorporate double-hinged doors which provide convenient access
- Designed for indoor use in protecting components from dust, dirt, oil and water.
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 28.000 in
- Application
- Intended for use in housing electronic controls, instruments, components and associated wiring. These enclosures incorporate hinged doors which provide convenient access. Designed for indoor use in protecting components from dust, dirt, oil and water.
- Cover Type
- Door
- Depth
- 8 in
- Height
- 24 in
- NEMA Rating
- 12
- Type
- Enclosure
- Weight
- 98 lb.
- Mounting Type
- External Mounting Feet
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- ENCL,NEMA12,2D,WM,24X48X8
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Captivated Screws
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 98.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 50.000 in
- Pallet Width
- 40.000 in
Country of OriginUS
Number of Doors (Fixed)2
ColorAnsi-61 Gray Textured
Cubic Capacity9216 cu.in
FinishTextured
MountingExternal Mounting Feet
StandardcULus
Width48 in
Finish TypeTextured
Nema Rating12
Class CodeP02
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P034
UL ListedYes
MaterialCarbon Steel
BOX SIZE11.500x50.000x28.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725349050
Pallet Height39.000 in
Pallet Weight321.000 lb.
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorYes
