Wiegmann WA424212WF N12 Double Door Wall-Mount 42X42X12 Carbon Steel - Gray
- MPN: WA424212WF
- UPC: 786725349371
- PPN: HBL-WA424212WF
- UNSPSC: 39121324
CAD
$3837.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

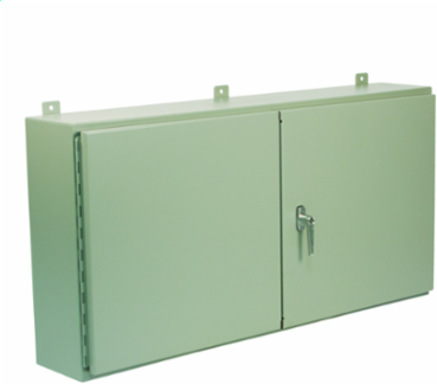

N12 Double Door Wall-Mount 42X42X12 Carbon Steel - Gray
Features
- 42X42X12 Carbon Steel - Gray
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Application | Intended for use in housing electronic controls, instruments, components and associated wiring. These enclosures incorporate hinged doors which provide convenient access. Designed for indoor use in protecting components from dust, dirt, oil and water. |
| Cover Type | Door |
| Depth | 12 in |
| Height | 42 in |
| NEMA Rating | 12 |
| Type | Enclosure |
| Weight | 187 lb. |
| Mounting Type | External Mounting Feet |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | ENCL,NEMA12,2D,WM,42X42X12 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Latches Type | Captivated Screws |
| Construction | Continuously Welded Seams |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 187.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 52.000 in |
| Pallet Width | 40.000 in |
| Number of Doors (Fixed) | 2 |
|---|---|
| Color | Ansi-61 Gray Textured |
| Cubic Capacity | 21168 cu.in |
| Finish | Textured |
| Mounting | External Mounting Feet |
| Standard | cULus |
| Width | 42 in |
| Finish Type | Textured |
| Nema Rating | 12 |
| Class Code | P02 |
| Freight Class Code | 06111001 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P02P034 |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 79.000x52.000x40.000 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725349371 |
| Pallet Height | 83.500 in |
| Pallet Weight | 232.000 lb. |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
