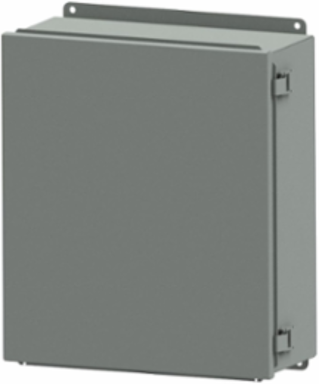

Wiegmann B060403CHQR N12 JIC Continuous Hinge Quick Release 6X4X3 Carbon Steel - Gray
Wiegmann B060403CHQR N12 JIC Continuous Hinge Quick Release 6X4X3 Carbon Steel - Gray
- MPN: B060403CHQR
- UPC: 786725331659
- PPN: HBL-B060403CHQR
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$178.62/ EA
Description
N12 JIC Continuous Hinge Quick Release 6X4X3 Carbon Steel - Gray
Features
- Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided for mounting optional panels securely. External quick release latches secure cover. Standard continuous hinged secures cover. Grounding provisions provided.
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 6.000 in
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 72 cu.in
- Finish
- Textured
- Mounting
- External Mounting Plates
- Standard
- cULus
- Width
- 4 in
- Finish Type
- Textured
- Nema Rating
- 12
- Class Code
- P04
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P04P067
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 4.250x8.000x6.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725331659
- Pallet Height
- 47.000 in
- Pallet Weight
- 1085.000 lb.
Country of OriginMX
ApplicationIntended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door with quick-release latching provide convenient access. Designed to provide protection from dust, dirt, oil, and water.
Cover TypeHinged Cover
Depth3 in
Height6 in
NEMA Rating12
TypeEnclosure
Weight2.5 lb.
Mounting TypeExternal Mounting Plates
ARRA CompliantContact Manufacturer
Description - InvoiceJIC-CHINGE-QR-6X4X3
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches TypeQuick-Release Latches
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorYes
