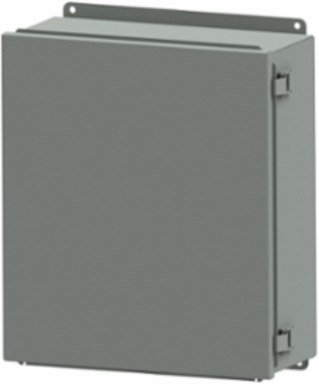

Wiegmann B080603CHQR N12 JIC Continuous Hinge Quick Release 8X6X3 Carbon Steel - Gray
- MPN: B080603CHQR
- UPC: 786725331758
- PPN: HBL-B080603CHQR
- UNSPSC: 39121324
CAD
$227.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N12 JIC Continuous Hinge Quick Release 8X6X3 Carbon Steel - Gray
Features
- Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided for mounting optional panels securely. External quick release latches secure cover. Standard continuous hinged secures cover. Grounding provisions provided.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door with quick-release latching provide convenient access. Designed to provide protection from dust, dirt, oil, and water.
- Cover Type
- Hinged Cover
- Depth
- 4 in
- Height
- 8 in
- NEMA Rating
- 12
- Type
- Enclosure
- Weight
- 5.7 lb.
- Finish Type
- Textured
- Nema Rating
- 12
- Class Code
- P04
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P04P067
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 4.650x11.000x7.500 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725331758
- Pallet Height
- 46.350 in
- Pallet Weight
- 870.300 lb.
- NAICS Code
- 3359326101
Actual Depth3.5 in
ColorAnsi-61 Gray Textured
Cubic Capacity192 cu.in
FinishTextured
MountingExternal Mounting Plates
StandardcULus
Width6 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
Mounting TypeExternal Mounting Plates
ARRA CompliantContact Manufacturer
Description - InvoiceJIC-CHINGE-QR-8X6X3.5
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches TypeQuick-Release Latches
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.700 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length40.000 in
Pallet Width48.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
