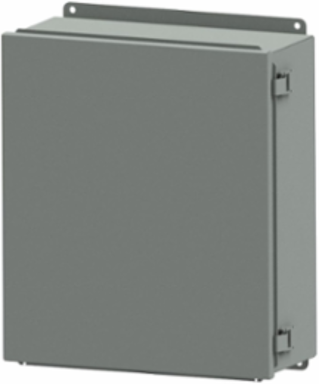

Wiegmann B060604CHQR N12 JIC Continuous Hinge Quick Release 6X6X4 Carbon Steel - Gray
- MPN: B060604CHQR
- UPC: 786725331703
- PPN: HBL-B060604CHQR
- UNSPSC: 39121324
CAD
$231.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 JIC Continuous Hinge Quick Release 6X6X4 Carbon Steel - Gray
Features
- Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided for mounting optional panels securely. External quick release latches secure cover. Standard continuous hinged secures cover. Grounding provisions provided.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Color | Ansi-61 Gray Textured |
| Cubic Capacity | 144 cu.in |
| Finish | Textured |
| Mounting | External Mounting Plates |
| Standard | cULus |
| Width | 6 in |
| Engineering Drawing 3 Display Text | MOD Center Drawings Instructions |
| Mounting Type | External Mounting Plates |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | JIC-CHINGE-QR-6X6X4 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Latches Type | Quick-Release Latches |
| Construction | Continuously Welded Seams |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 4.200 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Application | Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door with quick-release latching provide convenient access. Designed to provide protection from dust, dirt, oil, and water. |
|---|---|
| Cover Type | Hinged Cover |
| Depth | 4 in |
| Height | 6 in |
| NEMA Rating | 12 |
| Type | Enclosure |
| Weight | 4.2 lb. |
| Finish Type | Textured |
| Nema Rating | 12 |
| Class Code | P04 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | No |
| Sub Class Code | P04P067 |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 4.900x10.800x9.250 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725331703 |
| Pallet Height | 38.800 in |
| Pallet Weight | 554.600 lb. |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
