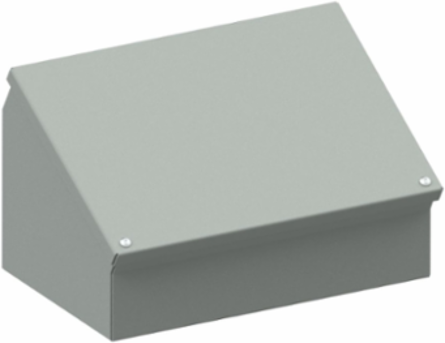

Wiegmann WC12C16 N12 Operator Interface Consolet 12X16 Carbon Steel - Gray
- MPN: WC12C16
- UPC: 786725441259
- PPN: HBL-WC12C16
- UNSPSC: 39121323
CAD
$585.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N12 Operator Interface Consolet 12X16 Carbon Steel - Gray
Features
- Fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Grounding provisions
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Application
- Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees.
- Cover Type
- Screw
- Depth
- 9 in
- Height
- 12 in
- Special Features
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
- Type
- Consolets
- Weight
- 20 lb.
- Material type
- Carbon Steel
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CONSOLETS,OIL-TIGHT,CS,12X16
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 20.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Depth9.09 in
ColorAnsi-61 Gray Smooth
Cubic Capacity1728 cu.in
FinishPolyester Powder
NEMA Rating12
StandardcULus
Width16 in
Finish TypePolyester Powder
Nema Rating12
Class CodeP04
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP04P069
ConstructionContinuously Welded Seams
SeriesWC-C Series
BOX SIZE10.300x18.550x17.750 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725441259
Pallet Height35.400 in
Pallet Weight257.520 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
