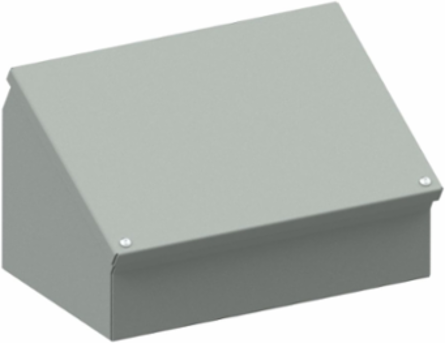

Wiegmann WC08C08 N12 Operator Interface Consolet 8X8 Carbon Steel - Gray
Wiegmann WC08C08 N12 Operator Interface Consolet 8X8 Carbon Steel - Gray
- MPN: WC08C08
- UPC: 786725441006
- PPN: HBL-WC08C08
- UNSPSC: 39121323
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$408.26/ EA
Description
N12 Operator Interface Consolet 8X8 Carbon Steel - Gray
Features
- Fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Grounding provisions
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
Specifications
Specifications
- Country of Origin
- United States
- Application
- Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees.
- Cover Type
- Screw
- Depth
- 7 in
- Height
- 8 in
- Special Features
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
- Type
- Consolets
- Weight
- 9 lb.
- Nema Rating
- 12
- Class Code
- P04
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P04P069
- Construction
- Continuously Welded Seams
- Series
- WC-C Series
- BOX SIZE
- 11.200x16.350x11.050 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725441006
- Pallet Height
- 49.300 in
- Pallet Weight
- 285.960 lb.
Actual Depth7.09 in
ColorAnsi-61 Gray Smooth
Cubic Capacity448 cu.in
FinishPolyester Powder
NEMA Rating12
StandardcULus
Width8 in
Finish TypePolyester Powder
ARRA CompliantContact Manufacturer
Description - InvoiceCONSOLETS,OIL-TIGHT,CS,8X8
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
