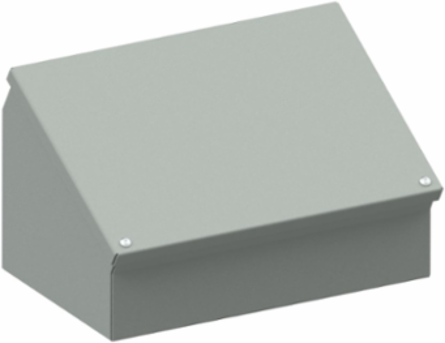

Wiegmann WC16C36 N12 Operator Interface Consolet 16X36 Carbon Steel - Gray
- MPN: WC16C36
- UPC: 786725441600
- PPN: HBL-WC16C36
- UNSPSC: 39121323
CAD
$1279.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 Operator Interface Consolet 16X36 Carbon Steel - Gray
Features
- Fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Grounding provisions
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Application | Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees. |
| Cover Type | Screw |
| Depth | 11 in |
| Height | 16 in |
| Special Features | Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included. |
| Type | Consolets |
| Weight | 47 lb. |
| Nema Rating | 12 |
| Class Code | P04 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P04P069 |
| UL Listed | Yes |
| Material | Carbon Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 47.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Actual Depth | 11.09 in |
|---|---|
| Color | Ansi-61 Gray Smooth |
| Cubic Capacity | 6336 cu.in |
| Finish | Polyester Powder |
| NEMA Rating | 12 |
| Standard | cULus |
| Width | 36 in |
| Finish Type | Polyester Powder |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CONSOLETS,OIL-TIGHT,CS,16X36 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| Construction | Continuously Welded Seams |
| Series | WC-C Series |
| BOX SIZE | 16.000x11.090x36.000 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725441600 |
| Pallet Height | 45.000 in |
| Pallet Weight | 450.000 lb. |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
