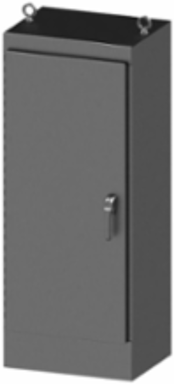

Wiegmann WA722418FSSS N12 Single Door Freestanding 72X24X18 304 Stainless Steel
- MPN: WA722418FSSS
- UPC: 786725849048
- PPN: HBL-WA722418FSSS
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N12 Single Door Freestanding 72X24X18 304 Stainless Steel
Features
- Designed to protect electrical and electronic controls, components and instruments in typical industrial environments
- Enclosures protect enclosure equipment from dust, dirt, oil, and dripping water
- These enclosures are used in machine tool applications for housing motor starters, drives, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment
- The addition of 19-inch rack mounting accessories make these enclosures ideal for providing rugged protection for sensitive rack mounted components in harsh industrial environments
- The enclosures are found extensively in automotive, pulp and paper, wood products, textile and similar industries
- Two styles are available to provide maximum flexibility: a) Single Door Single Access (single door on front) b) Two Door Single Access (two door on front).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 72.120 in
- Number of Doors (Fixed)
- 1
- Cubic Capacity
- 31104 cu.in
- Height
- 72 in
- NEMA Rating
- 12
- Type
- Enclosure
- Weight
- 268 lb.
- Mounting Type
- Freestanding
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- ENCL,N12,FS,SS,1D,72X24X18
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 3 Point Keylocking-Padlocking Combo
- Construction
- Continuously Welded Seams
- Series
- WA-FSSS Series
- BOX SIZE
- 72.120x18.120x24.120 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725849048
- NAICS Code
- 3359326208
Actual Depth18.12 in
Actual Width24.12 in
ApplicationDesigned to protect electrical and electronic controls, components, and instruments in typical industrial environments. Enclosures protect enclosure equipment from dust, dirt, oil, and dripping water. These enclosures are used in machine tool applications
Depth18 in
MountingFreestanding
StandardcULus
Width24 in
KnockoutsNo
Nema Rating12
Class CodeP03
Freight Class Code06111001
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P055
UL ListedYes
MaterialStainless Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack268.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
