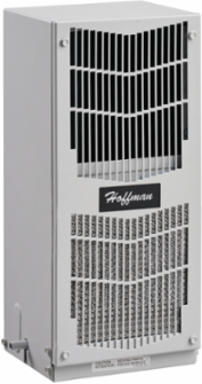

nVent Hoffman N160126G102 SpectraCool Compact Adv. Corrosion Protection Lvl 1, 800BTU 230V, Brushed, SS316
- MPN: N160126G102
- UPC: 783510357153
- PPN: HOF-N160126G102
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SpectraCool Narrow with Advanced Corrosion Protection Compact ACs utilize advanced coatings. This SpectraCool Compact Advanced Corrosion Protection Lvl 1, N160126G102 item is rated 800BTU 230V with material of SS316 finish Brushed.
Features
- Attractive industrial design with minimal use of visible fasteners
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Energy-efficient rotary compressor on most models
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
- R407C, R513A or R134a refrigerants
- 115, 230 and 400/460 VAC 3-phase power input on most models
- Reliable mechanical thermostat on enclosure side of the unit
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
- Dust-resistant condenser coil allows the unit to be run filterless in most indoor applications
- Dual condenser-side air movers for performance redundancy on G52 and G57 models
- Galvanized or stainless steel cover for rugged factory and outdoor environments
- Exterior and partially recessed mounting options
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 235
- Corrosion Resistant
- Yes
- Number of Phases
- 1
- Finish
- Brushed #4
- Height (H)
- 419
- Depth (D)
- 160
- Mounting
- Side wall
- Max Current
- 1.5
- Remote Access Control
- No
- Product Family
- SpectraCool
- Weight
- 30
Nominal Capacity Btu/h800
RefrigerantR513A
Nominal Voltage230
MaterialStainless Steel 316L
Thickness (T)1.21
Width (W)191
Outdoor InstallationYes
Operating Temperature-40
Ambient Temperature-40
Protection RatingNEMA Type 12
NEMA Rating12 Indoor, dust-resistant
