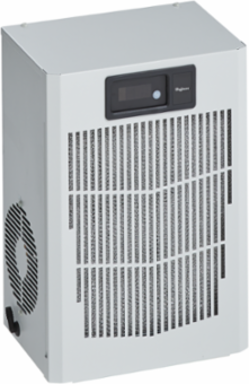

nVent Hoffman N170126G020 SpectraCool Compact Indoor Air Conditioner 1000 BTU 230V Lt Gray
- MPN: N170126G020
- UPC: 783510256012
- PPN: HOF-N170126G020
- UNSPSC: 40101701
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SpectraCool Narrow Compact Air Conditioners provide a space-saving solution on low-depth cabinets. This SpectraCool Compact Indoor with RAC N17, N170126G020 item is rated 1000BTU 230V with material of Steel color Lt Gray.
Features
- Narrow design accommodates 12-inch (300 mm) deep cabinets
- Attractive industrial design with minimal use of visible fasteners
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Operating temperature range from 50 F/10 C to 125 F/52 C
- Reliable mechanical thermostat is located behind the cover of the unit; air conditioner models include digital display on ambient side
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Galvanized sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- All models also include active condensate management, power-off relay for door switch and other system requirements and a malfunction switch
- Remote Access Control Units support up to 2 temperature sensors and 10 alarms. They support multiple communication protocols: SNMP, Modbus TCP, Ethernet/IP, and Profinet.
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Outdoor Installation | Yes |
| Nominal Voltage | 230 |
| Refrigerant | R513A |
| Operating Temperature | 10 |
| Protection Rating | NEMA Type 12 |
| Height (H) | 448 |
| Depth (D) | 213 |
| Color Code | RAL 7035 |
| NEMA Rating | 12 Indoor, dust-resistant |
| Sub Brand | SpectraCool |
| Nominal Capacity Watts | 300 |
|---|---|
| Nominal Capacity Btu/h | 1,025 |
| Number of Phases | 1 |
| Material | Mild Steel |
| Remote Access Control | Yes |
| Product Family | SpectraCool |
| Width (W) | 305 |
| Finish | Powder Coated |
| Thickness (T) | 1.21 |
| Weight | 60 |
| Color | Lt Gray |
