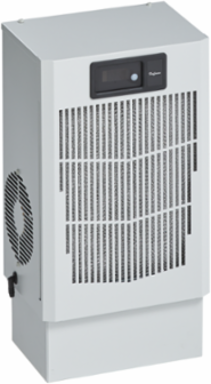

nVent Hoffman N170246G020 SpectraCool Compact Indoor Air Conditioner, 1800BTU 460V, Lt Gray, Steel, NEMA 12
- MPN: N170246G020
- UPC: 783510255862
- PPN: HOF-N170246G020
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
SpectraCool Narrow Compact Air Conditioners provide a space-saving solution on low-depth cabinets. This SpectraCool Compact Indoor with RAC N17, N170246G020 item is rated 1800BTU 460V with material of Steel color Lt Gray.
Features
- Narrow design accommodates 12-inch (300 mm) deep cabinets
- Attractive industrial design with minimal use of visible fasteners
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R513A or R134a refrigerant
- Models for 115, 230 and 400/460 VAC power input
- Operating temperature range from 50 F/10 C to 125 F/52 C
- Reliable mechanical thermostat is located behind the cover of the unit; air conditioner models include digital display on ambient side
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Galvanized sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- All models also include active condensate management, power-off relay for door switch and other system requirements and a malfunction switch
- Remote Access Control Units support up to 2 temperature sensors and 10 alarms. They support multiple communication protocols: SNMP, Modbus TCP, Ethernet/IP, and Profinet.
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 305
- Nominal Voltage
- 460
- Number of Phases
- 1
- Nominal Capacity Watts
- 527
- Max Current
- 2
- Product Family
- SpectraCool
- Finish
- Powder Coated
- Thickness (T)
- 1.21
- Weight
- 60
- Color
- Lt Gray
Height (H)562
Depth (D)213
Remote Access ControlYes
Nominal Capacity Btu/h1,800
Operating Temperature10
Protection RatingNEMA Type 12
MaterialMild Steel
Color CodeRAL 7035
NEMA Rating12 Indoor, dust-resistant
Sub BrandSpectraCool
