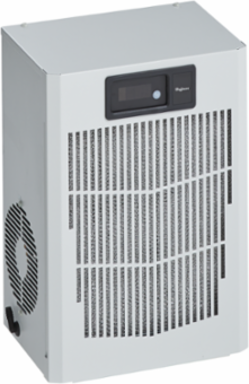

nVent Hoffman N170226G010 SpectraCool Compact Indoor Air Conditioner 1800BTU 230V Lt Gray
- MPN: N170226G010
- UPC: 783510255688
- PPN: HOF-N170226G010
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
SpectraCool Narrow Compact Air Conditioners provide a space-saving solution on low-depth cabinets. This SpectraCool Compact Indoor N17, N170226G010 item is rated 1800BTU 230V with material of Steel color Lt Gray.
Features
- Narrow design accommodates 12-inch (300 mm) deep cabinets
- Attractive industrial design with minimal use of visible fasteners
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R513A or R134a refrigerant
- Models for 115, 230 and 400/460 VAC power input
- Operating temperature range from 50 F/10 C to 125 F/52 C
- Reliable mechanical thermostat is located behind the cover of the unit; air conditioner models include digital display on ambient side
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Galvanized sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- All models also include active condensate management, power-off relay for door switch and other system requirements and a malfunction switch
- Remote Access Control Units support up to 2 temperature sensors and 10 alarms. They support multiple communication protocols: SNMP, Modbus TCP, Ethernet/IP, and Profinet.
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 305
- Nominal Voltage
- 230
- Nominal Capacity Btu/h
- 1,800
- Operating Temperature
- 10
- Protection Rating
- NEMA Type 12
- Material
- Mild Steel
- Color Code
- RAL 7035
- NEMA Rating
- 12 Indoor, dust-resistant
- Sub Brand
- SpectraCool
- Color
- Lt Gray
Height (H)448
Depth (D)213
Remote Access ControlNo
Nominal Capacity Watts527
Max Current3.5
Product FamilySpectraCool
FinishPowder Coated
Thickness (T)1.21
Weight54.6
Voltage Rating200 - 250 VAC
