nVent Hoffman N210226G060 SpectraCool Narrow Indoor/Outdoor AC with RAC, 2000 BTU 230V, Lt Gray, Steel
- MPN: N210226G060
- UPC: 783510344481
- PPN: HOF-N210226G060
- UNSPSC: 40101701
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

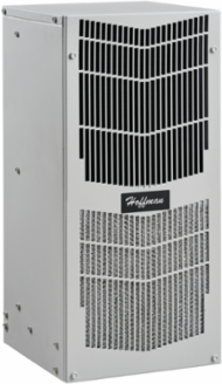

SpectraCool Narrow Indoor/Outdoor ACs provide space-saving solution on low-depth cabinets. This SpectraCool Narrow Indoor/Outdoor AC with RAC, N210226G060 item is rated 2000 BTU 230V with material of Steel color Lt Gray.
Features
- Narrow design accommodates 12-inch (300-mm) deep cabinets
- Advanced Corrosion Protection Level 1 (ACP L1) Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Attractive industrial design with minimal use of visible fasteners
- Advanced Corrosion Protection Level 2 (ACP L2) Protection Includes: Everything that was coated in ACP L1, plus protective coatings applied to the evaporator (interior facing) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
- Energy efficient rotary compressor on N36 and N43 models
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Galvanized sheet-metal cover for rugged factory and outdoor environments
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Nominal Capacity Btu/h | 2,000 |
| Number of Phases | 1 |
| Material | Mild Steel |
| Remote Access Control | Yes |
| Protection Rating | NEMA Type 12 |
| Height (H) | 531 |
| Depth (D) | 251 |
| Color | Light Gray |
| Mounting | Side wall |
| Color Code | RAL 7035 |
| Weight | 60 |
| Nominal Capacity Watts | 586 |
|---|---|
| Nominal Voltage | 230 |
| Refrigerant | R513A |
| Operating Temperature | -40 |
| Corrosion Resistant | No |
| Outdoor Installation | No |
| Width (W) | 254 |
| Finish | Powder Coated |
| Thickness (T) | 1.21 |
| Product Family | SpectraCool |
| NEMA Rating | 12 Indoor, dust-resistant |
| Sub Brand | SpectraCool |
