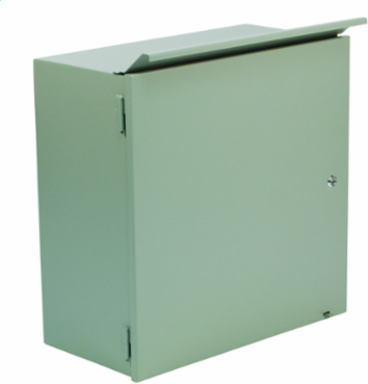

Wiegmann CTSD202412 N3R CT Single Door Hinged-Cover 20X24X12 Carbon Steel - Gray
- MPN: CTSD202412
- UPC: 786725854110
- PPN: HBL-CTSD202412
- UNSPSC: 39121324
CAD
$1233.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N3R CT Single Door Hinged-Cover 20X24X12 Carbon Steel - Gray
Features
- Manufactured from 14 gauge carbon steel
- Fully seam welded and ground smooth, with weep hole
- Drip shield
- Lift off hinges, gasketed doors
- Supplied with non-locking 1/4 turn latch
- Meter seal provisions
- Mounting holes in back
- Supplied with studs in back of enclosure to support optional wood sub panel
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Designed as a housing for current and voltage transformers, recorders, meters, junction box, service box, rely and/or for terminal instrumentation.
- Cover Type
- Hinged Cover
- Depth
- 12 in
- Height
- 24 in
- NEMA Rating
- 3R
- Type
- Enclosure
- Weight
- 51 lb.
- Finish Type
- Smooth
- Mounting Type
- Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CT,SD,CS,20X24X12
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 24.000x12.000x20.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725854110
- NAICS Code
- 3359326101
Number of Doors (Fixed)1
ColorAnsi-61 Gray Smooth
Cubic Capacity5760 cu.in
FinishSmooth
MountingMounting Holes
StandardcULus
Width20 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
KnockoutsNo
Nema Rating3R
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P001
ConstructionSeam and Tack Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack51.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Certifications
- Buy American Compliant
- Contact Manufacturer
- Listings
- UL, CSA
Certified ListedcULus
