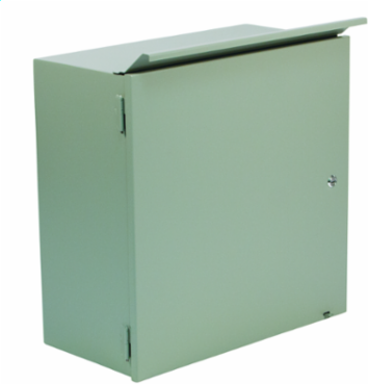

Wiegmann CTSD182410 N3R CT Single Door Hinged-Cover 24X18X10 Carbon Steel - Gray
- MPN: CTSD182410
- UPC: 786725854097
- PPN: HBL-CTSD182410
- UNSPSC: 39121324
CAD
$2524.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N3R CT Single Door Hinged-Cover 24X18X10 Carbon Steel - Gray
Features
- Manufactured from 14 gauge carbon steel
- Fully seam welded and ground smooth, with weep hole
- Drip shield
- Lift off hinges, gasketed doors
- Supplied with non-locking 1/4 turn latch
- Meter seal provisions
- Mounting holes in back
- Supplied with studs in back of enclosure to support optional wood sub panel
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Application | Designed as a housing for current and voltage transformers, recorders, meters, junction box, service box, rely and/or for terminal instrumentation. |
| Cover Type | Hinged Cover |
| Depth | 10 in |
| Height | 24 in |
| NEMA Rating | 3R |
| Type | Enclosure |
| Weight | 40 lb. |
| Finish Type | Smooth |
| Mounting Type | Mounting Holes |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CT, SD, CS, 24X18X10 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 13.500x27.100x20.050 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725854097 |
| Pallet Height | 45.000 in |
| Pallet Weight | 302.220 lb. |
| NAICS Code | 3359326101 |
| Number of Doors (Fixed) | 1 |
|---|---|
| Color | Ansi-61 Gray Smooth |
| Cubic Capacity | 4320 cu.in |
| Finish | Smooth |
| Mounting | Mounting Holes |
| Standard | cULus |
| Width | 18 in |
| Engineering Drawing 3 Display Text | MOD Center Drawings Instructions |
| Knockouts | No |
| Nema Rating | 3R |
| Class Code | P01 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P01P001 |
| Construction | Seam and Tack Welded |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 40.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
