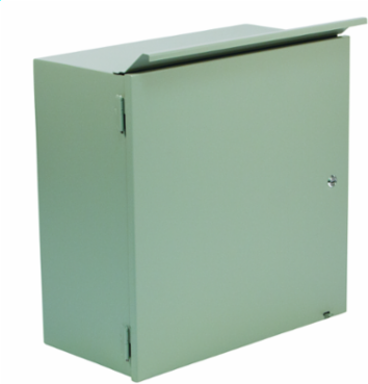

Wiegmann CTSD303612 N3R CT Single Door Hinged-Cover 30X36X12 Carbon Steel - Gray
Wiegmann CTSD303612 N3R CT Single Door Hinged-Cover 30X36X12 Carbon Steel - Gray
- MPN: CTSD303612
- UPC: 786725853922
- PPN: HBL-CTSD303612
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3229.26/ EA
Description
N3R CT Single Door Hinged-Cover 30X36X12 Carbon Steel - Gray
Features
- Manufactured from 12 gauge carbon steel
- Fully seam welded and ground smooth, with weep hole
- Drip shield
- Lift off hinges, gasketed doors
- Supplied with non-locking 1/4 turn latch
- Meter seal provisions
- Mounting holes in back
- Supplied with studs in back of enclosure to support optional wood sub panel
Specifications
Specifications
- Country of Origin
- Mexico
- Application
- Designed as a housing for current and voltage transformers, recorders, meters, junction box, service box, rely and/or for terminal instrumentation.
- Cover Type
- Hinged Cover
- Depth
- 12 in
- Height
- 36 in
- NEMA Rating
- 3R
- Type
- Enclosure
- Weight
- 122 lb.
- Finish Type
- Textured
- Mounting Type
- Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CT,SD,CS,30X36X12
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 14.000x38.750x31.750 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725853922
- Pallet Height
- 32.500 in
- Pallet Weight
- 295.000 lb.
Number of Doors (Fixed)1
ColorAnsi-61 Gray Textured
Cubic Capacity12960 cu.in
FinishTextured
MountingMounting Holes
StandardcULus
Width30 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
KnockoutsNo
Nema Rating3R
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P001
ConstructionSeam and Tack Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack122.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
