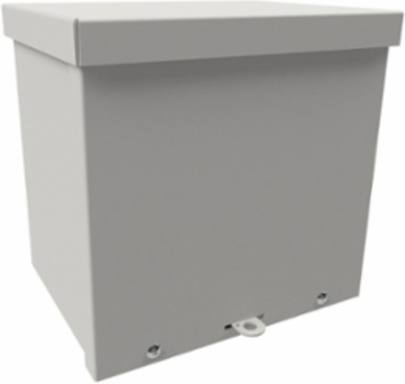

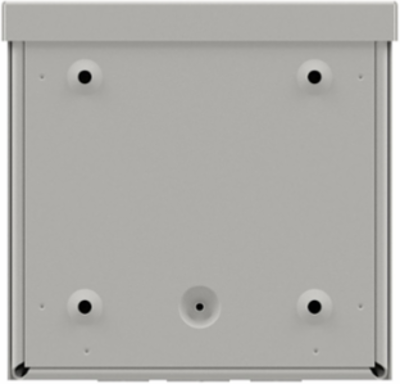

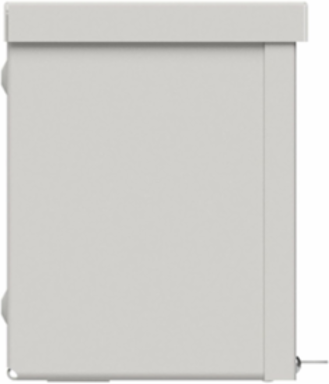

Wiegmann RSC363612 N3R Screw-Cover Wall-Mount 36X36X12 Carbon Steel - Gray
- MPN: RSC363612
- UPC: 786725403653
- PPN: HBL-RSC363612
- UNSPSC: 39121324
CAD
$1815.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N3R Screw-Cover Wall-Mount 36X36X12 Carbon Steel - Gray
Features
- Bodies and doors fabricated from 12 gauge carbon steel
- Drip shield top and smooth seamless sides and front
- A slip-on reversible cover is sercurely fastened with screws located along bottom edge
- No gasketing is required
- Hasp for padlocking or meter seal is provided
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 15552 cu.in
- Finish
- Textured
- Mounting
- Mounting Holes
- Standard
- cULus
- Width
- 36 in
- Finish Type
- Textured
- Material type
- Carbon Steel
- Nema Rating
- 3R
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P008
- Construction
- Tack Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 176.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ApplicationDesigned for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water.
Cover TypeScrew Cover
Depth12 in
Height36 in
NEMA Rating3R
TypeEnclosure
Weight176 lb.
KnockoutsNo
Mounting TypeMounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceRSC,NEMA3R,CS, 36X36X12
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE36.000x12.000x36.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725403653
Pallet Height41.500 in
Pallet Weight749.000 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
