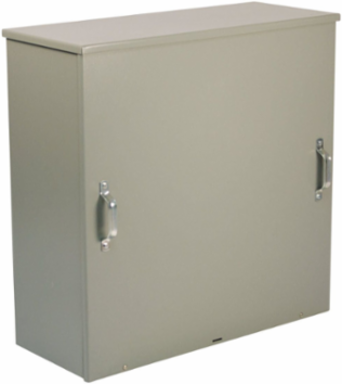

Wiegmann WCT363012 N3R Single Door Transformer Screw-Cover 36X30X12 Carbon Steel - Gray
Wiegmann WCT363012 N3R Single Door Transformer Screw-Cover 36X30X12 Carbon Steel - Gray
- MPN: WCT363012
- UPC: 786725336043
- PPN: HBL-WCT363012
- UNSPSC: 39121319
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1337.12/ EA
Description
N3R Single Door Transformer Screw-Cover 36X30X12 Carbon Steel - Gray
Features
- Drip shield top and smooth seamless sides and front
- A slip-on removable cover is securely fastened with plated screws located along bottom edge
- No gasketing is required
- Mounting holes on back of cabinet
- Door handles provided
- Hasp for padlocking and provisions for meter seal are provided
- Grounding provisions provided
- For removal of cover, move downward, then outward
Specifications
Specifications
- Country of Origin
- Mexico
- Height
- 36 in
- Application
- Designed for use as transformer housings, junction boxes, and service boxes.
- Cubic Capacity
- 12960 cu.in
- NEMA Rating
- 3R
- Type
- Enclosure
- Width
- 30 in
- Finish Type
- Textured
- Mounting Type
- Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- WCT,SD,CS,TRANSFORMER,36X30X12
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 36.000x12.000x30.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725336043
- Pallet Weight
- 0.000 lb.
Depth12 in
Number of Doors (Fixed)1
ColorAnsi-61 Gray Textured
MountingMounting Holes
StandardcULus
Weight115 lb.
Cover TypeScrew Cover
KnockoutsNo
Nema Rating3R
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P001
ConstructionSeam Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack115.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
