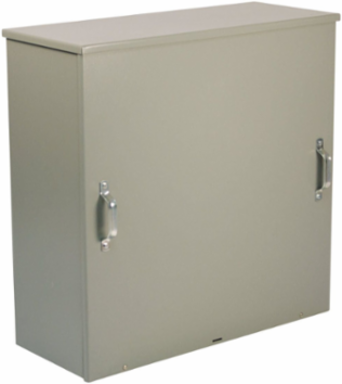

Wiegmann WCT483616 N3R Single Door Transformer Screw-Cover 48X36X12 Carbon Steel - Gray
- MPN: WCT483616
- UPC: 786725336081
- PPN: HBL-WCT483616
- UNSPSC: 39121319
CAD
$2495.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N3R Single Door Transformer Screw-Cover 48X36X12 Carbon Steel - Gray
Features
- Drip shield top and smooth seamless sides and front
- A slip-on removable cover is securely fastened with plated screws located along bottom edge
- No gasketing is required
- Mounting holes on back of cabinet
- Door handles provided
- Hasp for padlocking and provisions for meter seal are provided
- Grounding provisions provided
- For removal of cover, move downward, then outward
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 48 in |
| Application | Designed for use as transformer housings, junction boxes, and service boxes. |
| Cubic Capacity | 27648 cu.in |
| NEMA Rating | 3R |
| Type | Enclosure |
| Width | 36 in |
| Finish Type | Textured |
| Mounting Type | Mounting Holes |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | WCT,SD,CS,TRANSFORMER,48X36X16 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 18.000x49.000x38.000 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725336081 |
| Pallet Height | 41.000 in |
| Pallet Weight | 392.000 lb. |
| NAICS Code | 3359326101 |
| Depth | 16 in |
|---|---|
| Number of Doors (Fixed) | 1 |
| Color | Ansi-61 Gray Textured |
| Mounting | Mounting Holes |
| Standard | cULus |
| Weight | 196 lb. |
| Cover Type | Screw Cover |
| Knockouts | No |
| Nema Rating | 3R |
| Class Code | P01 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P01P001 |
| Construction | Seam Welded |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 196.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Pallet Length | 49.000 in |
| Pallet Width | 40.000 in |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
