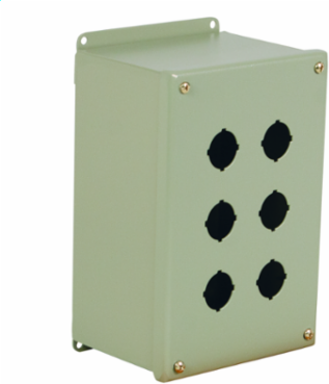

Wiegmann PBXD12 N4 30.5 MM 12 Deep Pushbutton Enclosure 11.7X8.5X4.7 Carbon Steel - Gray
- MPN: PBXD12
- UPC: 786725431458
- PPN: HBL-PBXD12
- UNSPSC: 39121326
CAD
$552.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N4 30.5 MM 12 Deep Pushbutton Enclosure 11.7X8.5X4.7 Carbon Steel - Gray
Features
- Designed to hold 30.5 mm oil-tight pushbuttons, switches and pilot lights
- Provide protection against dirt, dust, oil and water
- Extra deep design accommodates additional contact blocks for pushbuttons.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 11.750 in
- Description - Slang
- PB, PB Box, Push Button, Pushbutton, opertor box, operator terminal
- Color
- Ansi-61 Gray Textured
- Depth
- 12 in
- Mounting
- External Mounting Plates
- Number of Holes
- 12
- Type
- Deep Pushbutton Enclosure
- Weight
- 9 lb.
- Finish Type
- Polyester Powder
- Nema Rating
- 4
- Class Code
- P08
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P08P099
- Construction
- Continuously Welded Seams
- Series
- PBXD Series
- BOX SIZE
- 9.450x16.100x19.850 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725431458
- Pallet Height
- 42.300 in
- Pallet Weight
- 177.880 lb.
- NAICS Code
- 3359326101
Actual Depth11.75 in
Actual Width8.500 in
ApplicationDesigned to hold 30.5mm oil-tight pushbuttons, switches, and pilot lights. Provide protection against dirt, dust, oil, and water. Extra deep design accommodates additional contact blocks for pushbuttons.
Cubic Capacity1296 cu.in
Height12 in
NEMA Rating4
StandardcULus
Width9 in
Cover TypePushbutton;Screw
Mounting TypeExternal Mounting Plates
ARRA CompliantContact Manufacturer
Description - InvoiceENCL,OT,PBXD,CS,11.75X8.5X4.75
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- Listings
- UL, CSA
Certified ListedcULus
