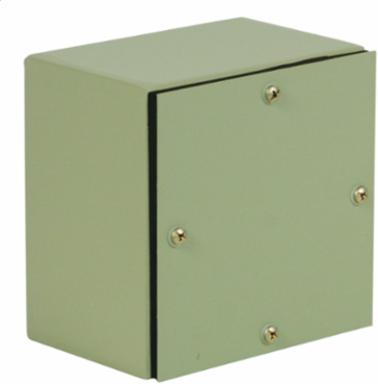

Wiegmann WA363612GSC N4 Gasketed Screw-Cover 36X36X12 Carbon Steel - Gray
- MPN: WA363612GSC
- UPC: 786725310852
- PPN: HBL-WA363612GSC
- UNSPSC: 39121324
CAD
$2274.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N4 Gasketed Screw-Cover 36X36X12 Carbon Steel - Gray
Features
- Bodies and covers fabricated from 12 gauge carbon steel
- Seams are continuously welded and ground smooth
- Cover contains closed cell oil resistant neoprene gasket
- Enclosure comes with stainless steel cover screws which thread into sealed wells to prevent liquid, dust, etc. from entering into the box through the screw holes
- Ground stud located in door
- No holes, knockout, or rear mounting holes
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- Ansi-61 Gray Smooth
- Cubic Capacity
- 7448 cu.in
- Finish
- Smooth
- NEMA Rating
- 4
- Type
- Enclosure
- Weight
- 110 lb.
- Finish Type
- Smooth
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SC, GSKT, 36X36X12
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 14.000x38.000x38.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725310852
- Pallet Weight
- 0.000 lb.
ApplicationDesigned for use as wiring box, junction box, pull box, and terminal box in many indoor or outdoor applications where dust or moisture is a problem.
Cover TypeScrew Cover
Depth14 in
Height14 in
StandardcULus
Width38 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
Nema Rating4
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P006
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - Gross Weight per Pack110.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL
