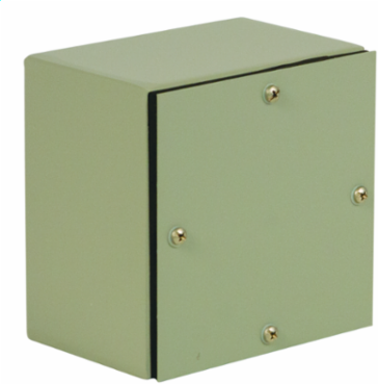

Wiegmann WA060606GSC N4 Gasketed Screw-Cover 6X6X6 Carbon Steel - Gray
Wiegmann WA060606GSC N4 Gasketed Screw-Cover 6X6X6 Carbon Steel - Gray
- MPN: WA060606GSC
- UPC: 786725848621
- PPN: HBL-WA060606GSC
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$188.28/ EA
Description
N4 Gasketed Screw-Cover 6X6X6 Carbon Steel - Gray
Features
- Bodies and covers fabricated from 14 gauge carbon steel
- Seams are continuously welded and ground smooth
- Cover contains closed cell oil resistant neoprene gasket
- Enclosure comes with stainless steel cover screws which thread into sealed wells to prevent liquid, dust, etc. from entering into the box through the screw holes
- Ground stud located in door
- No holes, knockout, or rear mounting holes
Specifications
Specifications
- Country of Origin
- Mexico
- Actual Height
- 6.040 in
- Application
- Designed for use as wiring box, junction box, pull box, and terminal box in many indoor or outdoor applications where dust or moisture is a problem.
- Cover Type
- Screw Cover
- Depth
- 6 in
- Height
- 6 in
- Standard
- cULus
- Width
- 7 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Nema Rating
- 4
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P006
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Depth6.04 in
Actual Width7.040 in
ColorAnsi-61 Gray Textured
Cubic Capacity252 cu.in
FinishTextured
NEMA Rating4
TypeEnclosure
Weight4 lb.
Finish TypeTextured
ARRA CompliantContact Manufacturer
Description - InvoiceSC,BOX,GASKETED,MP,SW,6X6X6
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE7.500x6.750x6.500 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725848621
Pallet Height49.500 in
Pallet Weight1254.600 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL
