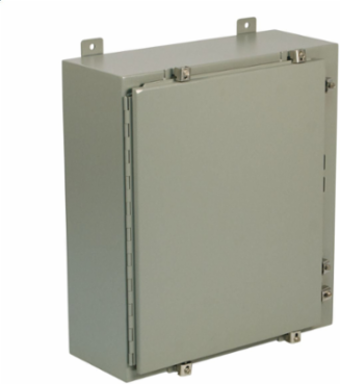

Wiegmann SN4302508 N4 Single Door Flanged Disconnect W/Clamp 30X25X8 Carbon Steel - Gray
- MPN: SN4302508
- UPC: 786725369102
- PPN: HBL-SN4302508
- UNSPSC: 39121324
CAD
$2149.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N4 Single Door Flanged Disconnect W/Clamp 30X25X8 Carbon Steel - Gray
Features
- Provides protection where equipment is hosed down, very wet or in outdoor applications
- Punching in right flange to house the following disconnect operating handles: Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse Type C361 and Type 371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class Class 9422 variable depth and cable mechanisms.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Number of Doors (Fixed)
- 1
- Color
- Ansi-61 Gray Smooth
- Depth
- 30 in
- Height
- 30 in
- NEMA Rating
- 4
- Type
- Enclosure
- Weight
- 62 lb.
- Mounting Type
- External Mounting Feet
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- DISC,RT,F.N4,CS,30X25 3/8X8
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Clamps
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 62.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Width25.380 in
ApplicationThese general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers.
Cubic Capacity22500 cu.in
FinishPolyester Powder
MountingExternal Mounting Feet
StandardcULus
Width25 in
Finish TypePolyester Powder
Nema Rating4
Class CodeP02
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P030
UL ListedYes
MaterialCarbon Steel
BOX SIZE10.000x33.000x26.500 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725369102
Pallet Height44.500 in
Pallet Weight293.000 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
