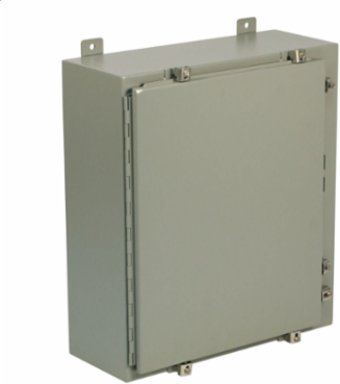

Wiegmann SN4603712 N4 Single Door Flanged Disconnect W/Clamp 60X37X12 Carbon Steel - Gray

MPN: SN4603712
UPC: 786725369409
PPN: HBL-SN4603712
UNSPSC: 39121324

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

N4 Single Door Flanged Disconnect W/Clamp 60X37X12 Carbon Steel - Gray

Features

Provides protection where equipment is hosed down, very wet or in outdoor applications
Punching in right flange to house the following disconnect operating handles: Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse Type C361 and Type 371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class Class 9422 variable depth and cable mechanisms.

Specifications

Country of Origin: Mexico

Number of Doors (Fixed): 1

Color: Ansi-61 Gray Textured

Depth: 60 in

Height: 60 in

NEMA Rating: 4

Type: Enclosure

Weight: 188 lb.

Mounting Type: External Mounting Feet

ARRA Compliant: Contact Manufacturer

Description - Invoice: DISC,RT,F,N4,CS,60X37 3/8X12

Harmonization Code: 7326908688

Lead Time: 21 wk

Order Multiple: 1 EA

Stock Indicator: S - Shelf Stock

Latches Type: Clamps

Construction: Continuously Welded Seams

Base Unit of Measure: EA

Carton - Gross Weight per Pack: 188.000 lb.

Carton - Pack Description: Carton

Carton - Total Units: 1 EA

Actual Width37.380 in

ApplicationThese general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers.

Cubic Capacity133200 cu.in

FinishPolyester Powder

MountingExternal Mounting Feet

StandardcULus

Width37 in

Finish TypePolyester Powder

Nema Rating4

Class CodeP02

Freight Class Code06316009

Image Actual Or RepresentativeR

MSDS FlagNo

Returnable IndicatorYes

Sub Class CodeP02P030

UL ListedYes

MaterialCarbon Steel

BOX SIZE60.000x12.130x37.380 (in)

Carton - Number of Sub Packs1

Carton - SCC-14 Next Lower Level Sub Pack00786725369409

Certifications

Buy American Compliant: Contact Manufacturer

EU RoHS Indicator: No

Certified ListedcULus

ListingsUL, CSA
