Wiegmann N412D243608C N412 Double Door Wall-Mount Ultimate 24X36X08 Carbon Steel - Gray

MPN: N412D243608C
UPC: 786725889686
PPN: HBL-N412D243608C
UNSPSC: 39121324

$3700.29

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

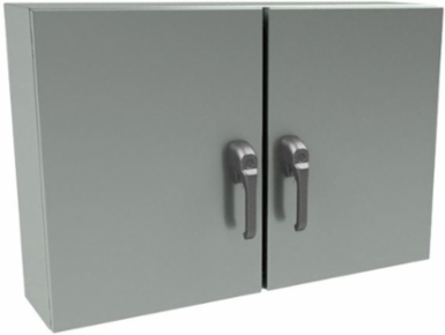

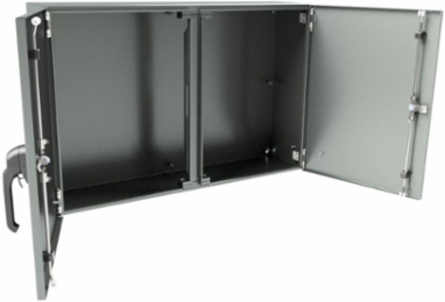

N412 Double Door Wall-Mount Ultimate 24X36X08 Carbon Steel - Gray

Features

Bodies and doors are fabricated from carbon steel
Seams are continuously welded and ground smooth
Increased tub opening for easier access
Grounding provisions are provided
Doors are sealed with a poured in place gasket
Studs for mounting ULTIMATE Series back panels are provided

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Number of Doors (Fixed)	2
Color	ANSI-61 Gray, Textured
Cubic Capacity	6912 cu.in
Finish	Textured
Mounting	Mounting Holes
Standard	cULus;IEC 60529
Type	Enclosure
Weight	90 lb.
Knockouts	No
Mounting Type	Mounting Holes
Number of Holes	4
Description - Invoice	N412 DBL DR WALL MNT ULT 24X36X08 CS-GRY
Harmonization Code	7326908688
Lead Time	2 wk
Sub Class Code	P02P038
Latches Type	3-Point Handle
Material	Carbon Steel
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00786725889686
Pallet Length	48.000 in
Pallet Width	40.000 in

Industry Standard(s)	cULus;IEC 60529
Cable Entry	NO
Cover Type	Door
Depth	8 in
Height	24 in
NEMA Rating	1,3R, 12, 13, 4
Sub Brand	Ultimate Series
Width	36 in
Finish Type	Textured
Material type	Carbon Steel
Nema Rating	1,3R, 12, 13, 4
Class Code	P02
Freight Class Code	06316011
Image Actual Or Representative	A
MSDS Flag	No
Buy America(n) Qualified	Contact Manufacturer
Construction	Continuously Welded Seams
Series	Ultimate Series
BOX SIZE	12.000x37.000x25.000 (in)
Pallet Height	40.500 in
Pallet Weight	267.000 lb.
NAICS Code	3359326101
