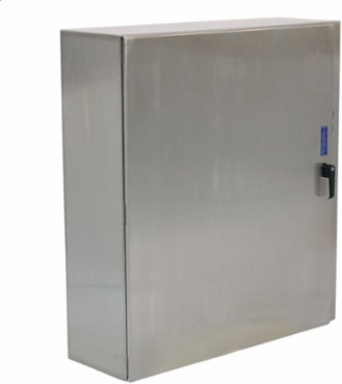

Wiegmann N412423212CDSS N412 Single Door Flanged Disconnect Ultimate Series 42X32X12 304 Stainless Steel
Wiegmann N412423212CDSS N412 Single Door Flanged Disconnect Ultimate Series 42X32X12 304 Stainless Steel
- MPN: N412423212CDSS
- UPC: 786725862740
- PPN: HBL-N412423212CDSS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
N412 Single Door Flanged Disconnect Ultimate Series 42X32X12 304 Stainless Steel
Features
- Bodies and doors are fabricated from 304 stainless steel
- Seams are continuously welded and ground smooth
- Doors are sealed with a poured in place gasket
- Mounting holes are located in the back of the enclosure
- Latching system interlocks with the disconnect handle for added safety
- Bodies and doors fabricated from 14 gauge 304 stainless steel. Continuously plasma welded seams. Increased tub opening for better access. Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional sub panel. Door latching system installed on door with a slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 2pt latch system.
Specifications
Certifications
- CSA Approved
- NO
- ETL
- NO
- EU RoHS Indicator
- Yes
cULusYES
Certified ListedcULus;IEC
ListingsUL, CSA
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 32.000 in
- Number of Doors (Fixed)
- 1
- Cable Entry
- NO
- Cover Type
- Door
- Depth
- 12 in
- Height
- 42 in
- NEMA Rating
- 1,3R,12,13,4,4X
- Standard
- cULus;IEC 60529
- Type
- Enclosure
- Weight
- 123 lb.
- Knockouts
- No
- Nema Rating
- 1,3R,12,13,4,4X
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N412,WM SS DISC. 42X32X12W/HNDL.ULTIMATE
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 3-Point
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725862740
Country of OriginMX
Industry Standard(s)cULus;IEC 60529
ApplicationThese general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without Wiegmann-supplied defeater door handle and handle hardware.
ColorBrushes Stainless Steel
Cubic Capacity16128 cu.in
FinishSmooth Grained
MountingMounting Holes
Special FeaturesBodies and doors fabricated from 14 gauge 304 stainless steel. Continuously plasma welded seams. Increased tub opening for better access. Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional sub panel. Door latching system installed on door with a slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 2pt latch system.
Sub BrandUltimate Series
Width32 in
Finish TypeSmooth Grained
Mounting TypeMounting Holes
Number of Holes4
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P057
UL ListedYes
MaterialStainless Steel
BOX SIZE42.000x12.000x32.000 (in)
