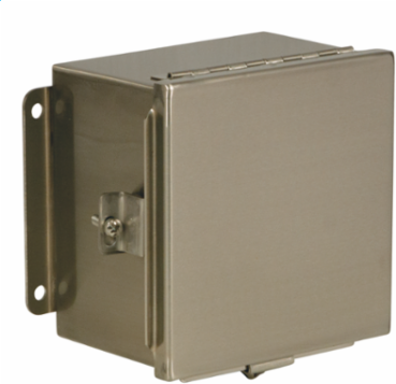

Wiegmann BN4121206CHSS N4X JIC Continuous Hinge 12X12X6 304 Stainless Steel
- MPN: BN4121206CHSS
- UPC: 786725378739
- PPN: HBL-BN4121206CHSS
- UNSPSC: 39121324
CAD
$1506.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N4X JIC Continuous Hinge 12X12X6 304 Stainless Steel
Features
- Provides unmatched protection for housing electrical components in highly corrosive environments
- This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids or contaminates.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants.
- Cubic Capacity
- 864 cu.in
- Height
- 12 in
- NEMA Rating
- 4X
- Type
- Enclosure
- Weight
- 13 lb.
- Knockouts
- No
- Mounting Type
- External Mounting Feet
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- NEMA4X,JIC,SS,CH,12X12X6
- Harmonization Code
- 7326908688
- Lead Time
- 7 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Clamps
- Construction
- Continuously Welded Seams
- Series
- BN4-CHSS Series
- BOX SIZE
- 7.700x14.350x14.300 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725378739
- Pallet Height
- 50.700 in
- Pallet Weight
- 501.480 lb.
- NAICS Code
- 3359326101
Number of Doors (Fixed)1
Cover TypeHinged Cover
Depth6 in
MountingExternal Mounting Feet
StandardcULus;IEC
Width12 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
Material type304 Stainless Steel
Nema Rating4X
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P052
UL ListedYes
MaterialStainless Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack13.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- No
- EU RoHS Indicator
- Yes
Certified ListedcULus;IEC
ListingsUL, CSA
