Wiegmann BN4141206CHSS N4X JIC Continuous Hinge 14X12X6 304 Stainless Steel
- MPN: BN4141206CHSS
- UPC: 786725378753
- PPN: HBL-BN4141206CHSS
- UNSPSC: 39121324
CAD
$1695.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

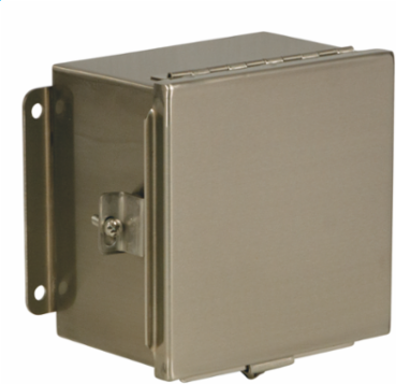

N4X JIC Continuous Hinge 14X12X6 304 Stainless Steel
Features
- Provides unmatched protection for housing electrical components in highly corrosive environments
- This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids or contaminates.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants.
- Cubic Capacity
- 1008 cu.in
- Height
- 14 in
- NEMA Rating
- 4X
- Type
- Enclosure
- Weight
- 18 lb.
- Knockouts
- No
- Mounting Type
- External Mounting Feet
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- NEMA4X,JIC,SS,CH,14X12X6
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Clamps
- Construction
- Continuously Welded Seams
- Series
- BN4-CHSS Series
- BOX SIZE
- 7.050x15.800x13.550 (in)
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Number of Doors (Fixed)1
Cover TypeHinged Cover
Depth6 in
MountingExternal Mounting Feet
StandardcULus;IEC
Width12 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
Material type304 Stainless Steel
Nema Rating4X
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P052
UL ListedYes
MaterialStainless Steel
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725378753
Pallet Height39.750 in
Pallet Weight82.800 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus;IEC
ListingsUL, CSA
