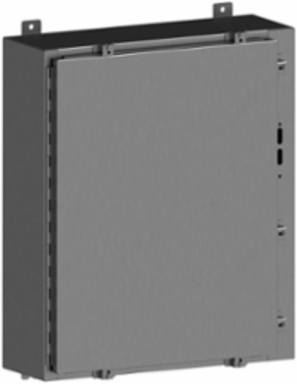

Wiegmann SSN4X363108 N4X Single Door Flanged Disconnect 36X31X8 304 Stainless Steel
Wiegmann SSN4X363108 N4X Single Door Flanged Disconnect 36X31X8 304 Stainless Steel
- MPN: SSN4X363108
- UPC: 786725369706
- PPN: HBL-SSN4X363108
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
N4X Single Door Flanged Disconnect 36X31X8 304 Stainless Steel
Features
- Provides protection for equipment in highley corrosive environments
- For use in indoor and outdoor settings
- Areas that are hosed down, frequently wet or have constant exposure to water, other liquids or contaminants
- Punching in right flange to house the following disconnect operating handles: Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse Type C361 and Type C371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class Class 9422 variable depth and cable mechanisms.
Specifications
Specifications
- Actual Depth
- 8.13 in
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 31.380 in
- Application
- These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers.
- Depth
- 8 in
- Height
- 36 in
- NEMA Rating
- 4X
- Type
- Enclosure
- Weight
- 89 lb.
- Mounting Type
- External Mounting Feet
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- DISC,RT,F,N4X,SS,36X31 3/8X8
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Clamps
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 89.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
Actual Width31.380 in
Country of OriginUS
Number of Doors (Fixed)1
Cubic Capacity8928 cu.in
FinishSmooth Grained
MountingExternal Mounting Feet
StandardcULus
Width31 in
Finish TypeSmooth Grained
Nema Rating4X
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P054
UL ListedYes
MaterialStainless Steel
BOX SIZE36.000x8.130x31.380 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725369706
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorNo
