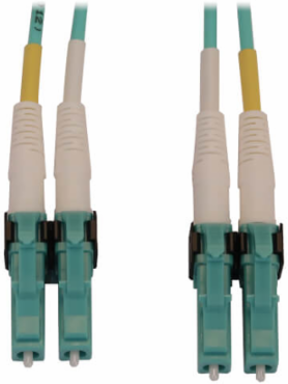

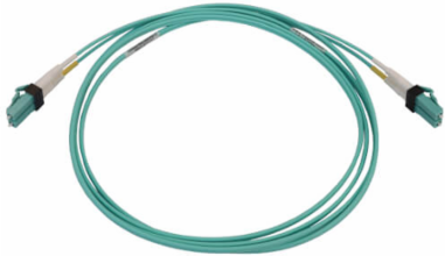

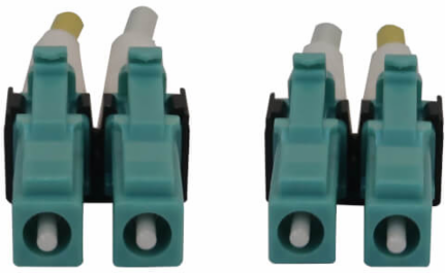

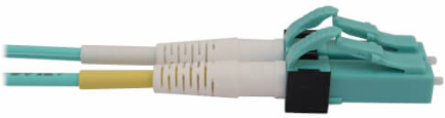

Tripp Lite N820X02MOM4 Fiber Optic Cable, 400G Multimode OM4, Duplex LC-PC, LSZH, Aqua, 2 m
- MPN: N820X02MOM4
- UPC: 037332272805
- PPN: TRP-N820X-02M-OM4
CAD
$34.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Multimode 50/125 OM4 Switchable Fiber Optic Cable (Duplex LC-PC M/M), LSZH, Aqua, 2 m (6.6 ft.)
Documentation & Downloads
Specifications
Dimensions
| Cable Length | 2 m (6.6 ft) |
|---|---|
| Side A - Connector 1 | LC Duplex (Male) |
| Optical Port | LC |
| Switchable Polarity | Yes |
| Clad Diameter | 125.0 |
| Primary Coating Diameter | 600.0 |
| Number of Fibers | 2 |
|---|---|
| Side B - Connector 1 | LC Duplex (Male) |
| Endface Polish | PC |
| Cable Outer Diameter | 2 mm x 4.1 mm |
| Core Diameter | 50.0 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
Performance
| Network Compatibility | 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Attenuation @ 850NM | 3.5 dB/km |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Wavelength | 1300nm; 850nm |
|---|---|
| Attenuation @ 1300NM | 1.5 dB/km |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 5% to 85% RH, Non-Condensing |
Material
| Technology | Multimode |
|---|---|
| Cable Jacket Color | Aqua |
| Cable Jacket Material | LSZH |
|---|---|
| Cable Jacket Rating | OFNR |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
