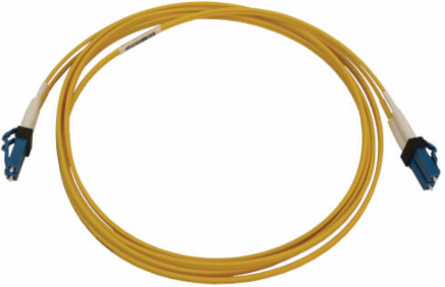

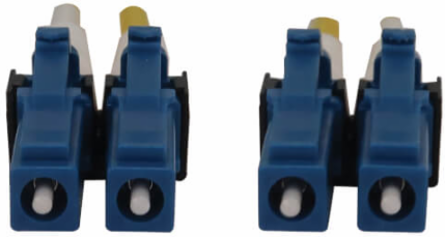

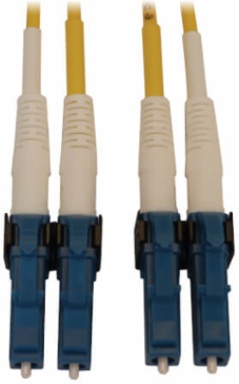

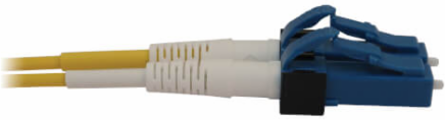

Tripp Lite N370X02M Fiber Optic Cable, 400G Duplex Singlemode 9/125 OS2, Switchable LC/UPC, LSZH, Yellow, 2 m
- MPN: N370X02M
- UPC: 037332271785
- PPN: TRP-N370X-02M
CAD
$33.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Duplex Singlemode 9/125 OS2 Switchable Fiber Optic Cable (LC/UPC M/M), LSZH, Yellow, 2 m (6.6 ft.)
Documentation & Downloads
Specifications
Performance
| Network Compatibility | 1 Gbps (Gigabit); 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Attenuation @ 1550nm | 0.3 dB/km |
| Storage Temperature Range | -4 to 140F (-20 to 60C) |
| Attenuation @ 1310nm | 0.4 dB/km |
|---|---|
| Operating Temperature Range | -4 to 140F (-20 to 60C) |
| Relative Humidity | 5% to 85% RH, Non-Condensing |
Dimensions
| Cable Length | 2 m (6.6 ft) |
|---|---|
| Switchable Polarity | Yes |
| Core Diameter | 9.0 um |
| Primary Coating Diameter | 600.0 um |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Optical Port | LC |
|---|---|
| Number of Fibers | 2 |
| Clad Diameter | 125 um |
| Cable Outer Diameter | 2.0 +/- 0.1 mm x 4.1 +/- 0.2 mm |
Material
| Technology | Singlemode |
|---|---|
| Cable Jacket Material | LSZH |
| Connector Color | Blue |
| Endface Polish | UPC |
|---|---|
| Cable Jacket Color | Yellow |
Compliance
| Product Warranty Period | Lifetime limited warranty |
|---|
