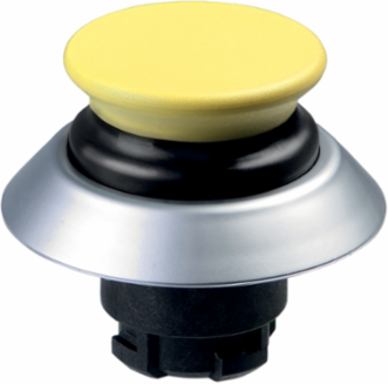

Schmersal 103009112 NDTP Mushroom Button, 22.3 mm Mounting Diameter, IP67/IP69K Protection
- MPN: 103009112
- PPN: SCM-103009112
CAD
$72.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NDTP Mushroom Button, 22.3 mm Mounting Diameter, IP67/IP69K Protection
Documentation & Downloads
Specifications
Key Specifications
- Height
- 20 mm
Electrical data
- Switching frequency
- 1,000 /h
Number of contact elements, maximum3
Mechanical data - Dimensions
- Height
- 20 mm
- Mounting diameter
- 22.3 mm
- Thickness of the front panel, maximum
- 6 mm
diameters for the actuating heads30 mm
Thickness, of the front panel, minimum1.5 mm
Spacing50 x 50 mm
General data - Features
- Mounting flange
- Yes
- Fully insulated
- Yes
Probing possibleYes
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- Small
- Sealing type
- Membrane | Lip gaskets
- Material of the front ring
- ABS, chrome-plated
- Colour of the operating element
- Yellow
- Colour of the bellows
- Black
VersionsMushroom impact button
Installation conditions (mechanical)arbitrarily
Material of the operatorsPlastic
Material of the bellowsSilicone
Colour of the front ringSilver
Gross weight36 g
Ambient conditions
- Degree of protection
- IP67 | IP69K
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
Ambient temperature-25 ... +80 °C
Restistance to shock50 g
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Actuating force, approx.
- 2 N
- Tightening torque of the screw
- 0.6 Nm
Actuating stroke5 mm
MountingMounting flange EFM
Approvals - Standards
- Certificates
- BG | cULus | IPA
