Wiegmann WRD747218N4D3PT NEMA 4 2-Door Floor Mount Enclosure with KwikHinge™ 74X72X18 Carbon Steel - Gray
- MPN: WRD747218N4D3PT
- UPC: 786725889389
- PPN: HBL-WRD747218N4D3PT
- UNSPSC: 39121329
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

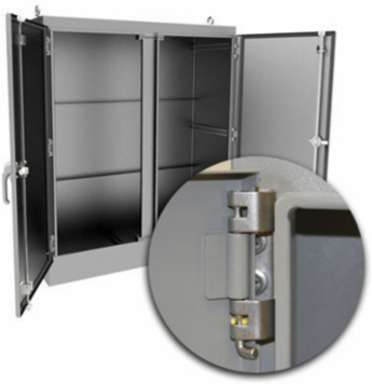

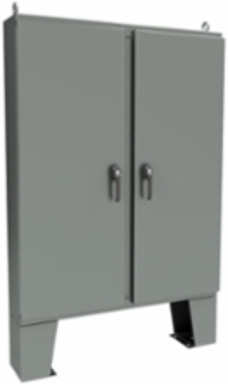

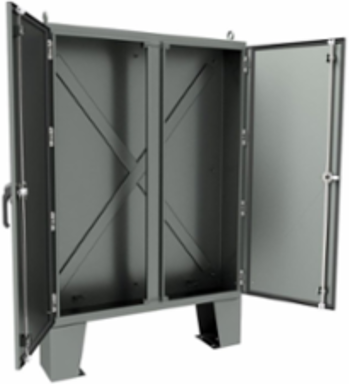

NEMA 4 2-Door Floor Mount Enclosure with KwikHinge™ 74X72X18 Carbon Steel - Gray
Features
- Body and doors are fabricated from carbon steel

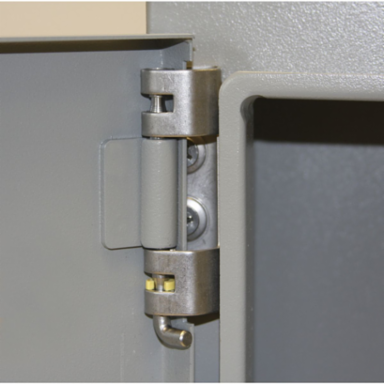

- Entire WRD series features our KwikHinge™ technology which allows enclosure doors to be quickly and easily removed by simply sliding the Heavy-Duty, 316 Stainless Steel, hinge pin
- Seams are continuously welded and ground smooth and the doors are sealed with a poured in place gaskets
- This enclosure also includes back panel and 3-point keylocking/padlocking combo handle
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 89.26 in
- Height
- 74 in
- Color
- Gray
- Depth
- 18 in
- Standard
- cULus;IEC 60950;IP66
- Width
- 72 in
- Cover Type
- KwikHinge™
- Mounting Type
- Floor Mount
- Class Code
- P02
- Freight Class Code
- 06111001
- Image Actual Or Representative
- R
- Returnable Indicator
- No
- Sub Class Code
- P02P031
- Series
- KwikHinge™ Series
- BOX SIZE
- (in)
- NAICS Code
- 3359326101
Actual Depth22.85 in
Actual Width72.13 in
Number of Doors (Fixed)2
Cubic Capacity95904 cu.in
MountingFloor Mount
TypeEnclosure
Weight595 lb.
Finish TypePolyester Powder
Nema Rating3R, 4, 12 and IP66
Description - InvoiceN4 2 DR FM REMOVE HNG 74X72X18 CS-GRY
Harmonization Code7326908688
Lead Time3 wk
Stock IndicatorN - Non-stock
MaterialCarbon Steel
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725889389
Certifications
- Buy American Compliant
- Contact Manufacturer
Certified ListedcULus;IEC 60950;IP66
