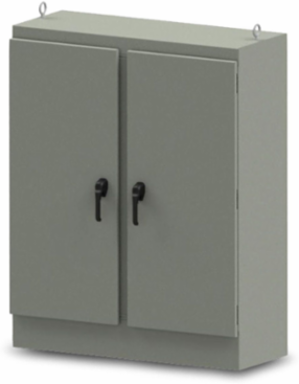

Wiegmann WRD907220FSD4 NEMA 4 Double Door Freestanding Enclosure with KwikHinge™ 90X72X20 Carbon Steel - Gray
- MPN: WRD907220FSD4
- UPC: 786725885381
- PPN: HBL-WRD907220FSD4
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NEMA 4 Double Door Freestanding Enclosure with KwikHinge™ 90X72X20 Carbon Steel - Gray
Features
- Body and doors are fabricated from carbon steel

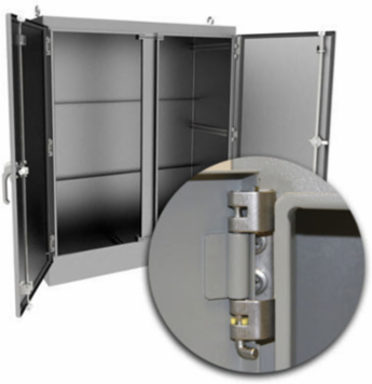

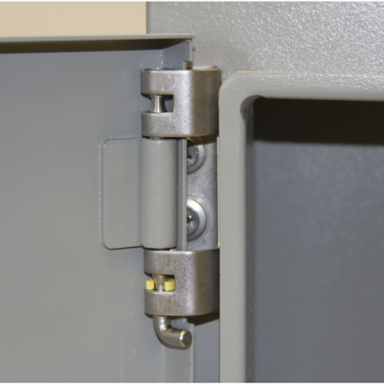

- Entire WRD series features our KwikHinge™ technology which allows enclosure doors to be quickly and easily removed by simply sliding the Heavy-Duty, 316 Stainless Steel, hinge pin
- Seams are continuously welded and ground smooth and the doors are sealed with a poured in place gaskets
- This enclosure also includes back panel and 3-point keylocking/padlocking combo handle
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Actual Height
- 90.12 in
- Number of Doors (Fixed)
- 2
- Cover Type
- KwikHinge™
- Depth
- 20 in
- Height
- 90 in
- NEMA Rating
- 3R, 4, 12 and IP66
- Type
- Enclosure
- Weight
- 783 lb.
- Mounting Type
- Freestanding
- Class Code
- P02
- Freight Class Code
- 06316005
- Image Actual Or Representative
- R
- Returnable Indicator
- No
- Sub Class Code
- P02P034
- Series
- KwikHinge™ Series
- BOX SIZE
- 90.000x20.000x72.000 (in)
- Carton - Total Units
- 1 EA
- NAICS Code
- 3359326101
Actual Depth20.12 in
Actual Width72.12 in
ColorGray
Cubic Capacity129600 cu.in
FinishPolyester Powder
MountingFreestanding
StandardcULus
Width72 in
Finish TypePolyester Powder
Nema Rating3R, 4, 12 and IP66
Description - InvoiceN4 DBL DR FS REMOVE HNG 90X72X20 CS-GRY
Harmonization Code7326908688
Lead Time3 wk
Stock IndicatorN - Non-stock
MaterialCarbon Steel
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725885381
Pallet Weight0.000 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
Certified ListedcULus
