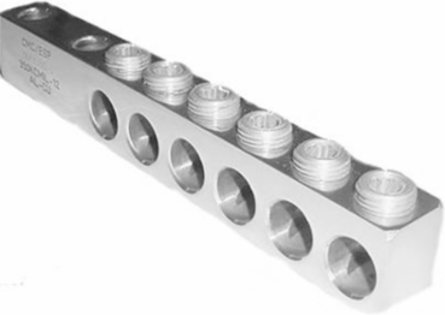

CMC NNM350-8I Nema mounting transformer connectors
- MPN: NNM350-8I
- UPC: 192663070374
- PPN: HBL-C58700027I
CAD
$119.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Nema mounting transformer connectors, Dual rated connectors for Aluminum or Copper conductors
Features
- Clear plated for low-contact resistance.
- Fully tested to ANSI C119.4 for Class ‘A’ connectors.
- Supplied with aluminum radial-tipped set-screws.
- Connector fabricated from 6061-T6 aluminum alloy for conductivity and strength.
- Includes CO-OX oxide inhibitor in all conductor holes and stud-mounting hole.
- Each unit individually wrapped and labeled for ease of identification and cleanliness.
- For installation, CMC® recommends the use of a 9” insulated Allen wrench.
- A torque wrench should be used to ensure the proper torque is achieved.
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 1.25 in
- Voltage Rating
- 600 V
- Conductor Range
- 350 Kcmil - #12 AWG
- Class Code
- C02
- Harmonization Code
- 8536904000
- Sub Class Code
- C02C203
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00192663070374
- Package - GTIN - Package
- 30192663070375
- Package Weight
- 0.944 lb.
Dimensions10.57 in x 1 in x 1.25 in
Length10.57 in
Width1 in
Number Of Conductors8
Freight Class Code06120000
Image Actual Or RepresentativeA
MaterialAluminum Alloy, 6061-T6
BOX SIZE(in)
Case - SCC-14 Next Lower Level Sub Pack30192663070375
Package Quantity24 EA
NAICS Code3359319101
