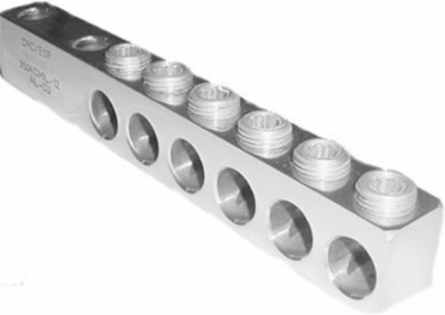

CMC NNM500-6I Nema mounting transformer connectors
CMC NNM500-6I Nema mounting transformer connectors
- MPN: NNM500-6I
- UPC: 192663070459
- PPN: HBL-C58700029I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$72.00/ EA
Description
Nema mounting transformer connectors, Dual rated connectors for Aluminum or Copper conductors
Features
- Clear plated for low-contact resistance.
- Fully tested to ANSI C119.4 for Class ‘A’ connectors.
- Supplied with aluminum radial-tipped set-screws.
- Connector fabricated from 6061-T6 aluminum alloy for conductivity and strength.
- Includes CO-OX oxide inhibitor in all conductor holes and stud-mounting hole.
- Each unit individually wrapped and labeled for ease of identification and cleanliness.
- For installation, CMC® recommends the use of a 9” insulated Allen wrench.
- A torque wrench should be used to ensure the proper torque is achieved.
Specifications
Specifications
- Country of Origin
- US
- Height
- 1.63 in
- Voltage Rating
- 600 V
- Conductor Range
- 500 Kcmil - #10 AWG
- Class Code
- C05
- Harmonization Code
- 8536904000
- Sub Class Code
- C05
- Base Unit of Measure
- EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30192663070450
- Package Quantity
- 12 EA
Dimensions10.28 in x 1 in x 1.63 in
Length10.28 in
Width1 in
Number Of Conductors6
Freight Class Code06120000
Image Actual Or RepresentativeA
MaterialAluminum Alloy, 6061-T6
Carton - SCC-14 Next Lower Level Sub Pack00192663070459
Package - GTIN - Package30192663070450
Package Weight1.150 lb.
Downloads
