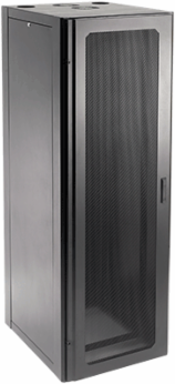

77 Inch Steel Server Cabinet, 43 Rack Units, UL Listed, Perforated Doors
nVent Hoffman

nVent Hoffman NC2178NS 77 Inch Steel Server Cabinet, 43 Rack Units, UL Listed, Perforated Doors

  • MPN: NC2178NS
  • UPC: 783510198442
  • PPN: HOF-NC2178NS

CAD

$1699.38

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Net Series Communication and Server Cabinet by nVent Hoffman is engineered for optimal equipment ventilation and security in demanding environments. Its design features fully perforated or window front and split rear perforated doors, providing excellent airflow while maintaining convenient access for authorized personnel, thanks to key-locking door handles. Built with a robust welded multi-formed steel frame, it is capable of supporting significant weights tested to withstand 4000 lbs without failure while accommodating a variety of equipment configurations with its infinitely positionable rack angles and tool-less shelf options. In addition to the flexible mounting options that comply with EIA standards, this cabinet also supports enhanced organization with its integrated cable management features and fan-ready top for thermal management. The adjustable design, including removable and reversible doors, ensures installation flexibility, making this cabinet a versatile solution for any communications or server setup. Whether you need a dedicated communication cabinet or a reliable server enclosure, the Net Series model is an excellent choice for maintaining efficiency and security in your tech space.

Features

  • Includes two sets of adjustable L-shaped rack angles for convenient equipment mounting
  • Rack angles on communication cabinets have tapped 10-32 holes per EIA standards; Order 10-32 fasteners separately
  • Rack angles on server cabinets have square holes per EIA standards. Order fasteners and cage nuts separately
  • Rack angle settings on all 700- and 800-mm wide cabinets can accommodate either 19- or 23-in. rack spacing
  • In 600-mm wide cabinets, equipment mounted on 19-in. rack angles is centered
  • In 700- and 800-mm wide cabinets, 19-in. rack angles can be set to center equipment or to mount equipment next to the left or the right side for improved cable management
  • Rack angles infinitely positionable within the cabinet for easy adjustment to desired position
  • All doors are field removable and reversible with left or right hinging for installation flexibility
  • Communication cabinet has fully perforated or window front and louvered rear doors for equipment ventilation
  • Server cabinet has fully perforated front and split rear perforated doors for easy access to servers
  • Doors have key-locking handles that provide security with convenient access for authorized personnel
  • Removable side panels with quarter-turn key-locking latch are inset for flush appearance
  • Two cable entry ports with caps and grommets on cabinet top for wiring ease
  • Fan-ready top with integral finger guard. Order up to two 6-in. fans separately
  • Caster- and leveler-ready open base design. Order casters and levelers separately
  • Some models available with or without sides
  • Welded multi-formed steel frame. The top and columns are 16 gauge; base is 14 gauge
  • Multi-formed rigid doors are 14 gauge steel
  • Window made of 1/8-in. smoke-tinted acrylic
  • Formed solid sides are 14 gauge steel
  • Rack angles are 12 gauge steel
  • Ground studs provided on doors and covers

Documentation & Downloads

Specifications

Key Specifications

Bulletin Number
DC
Model Code
19844
Interchangeable
False
A in.
84
C in.
33.98
Description
Communication Cabinet
N in.
77.00
Additional Rack Angles
Tapped 10-32
MaterialSteel
Ship Wt. Std. Pkg. (lbs)315.0
Catalog NumberNC2178NS
B in.27.56
Rack Units43
M in.No Sides
Rack Angle Holes18.65
StandardsUL 2416 Listed (perforated, split perforated and louvered door models only) || EIA 310-D || IEC 60529, IP20 || Perforated door material meets equipment manufacturer ventilation requirements
