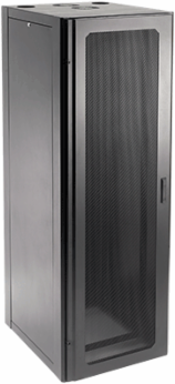

nVent Hoffman NCW2168NS Communication Server Cabinet, 43 Rack Units, 84 Inch Height, Steel
- MPN: NCW2168NS
- UPC: 783510198459
- PPN: HOF-NCW2168NS
CAD
$1762.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Net Series Communication and Server Cabinet from nVent Hoffman is engineered for efficient server storage and equipment management. Featuring a welded multi-formed steel frame, this cabinet stands firm under demanding conditions, having been rigorously tested to support up to 4000 lbs without failure. Its fully perforated front and split rear doors ensure optimal ventilation for the housed equipment, while the tool-less shelf and adjustable rack angles allow for customized organization and easy access. Additionally, the cabinet incorporates flexible design elements, such as field-removable and reversible doors, and options for casters or levelers, making it a versatile choice for any data and communication environment. Whether used in IT enclosures or for general communication purposes, this model combines functionality and security, highlighted by key-locking handles for authorized access.
Features
- Includes two sets of adjustable L-shaped rack angles for convenient equipment mounting
- Rack angles on communication cabinets have tapped 10-32 holes per EIA standards; Order 10-32 fasteners separately
- Rack angles on server cabinets have square holes per EIA standards. Order fasteners and cage nuts separately
- Rack angle settings on all 700- and 800-mm wide cabinets can accommodate either 19- or 23-in. rack spacing
- In 600-mm wide cabinets, equipment mounted on 19-in. rack angles is centered
- In 700- and 800-mm wide cabinets, 19-in. rack angles can be set to center equipment or to mount equipment next to the left or the right side for improved cable management
- Rack angles infinitely positionable within the cabinet for easy adjustment to desired position
- All doors are field removable and reversible with left or right hinging for installation flexibility
- Communication cabinet has fully perforated or window front and louvered rear doors for equipment ventilation
- Server cabinet has fully perforated front and split rear perforated doors for easy access to servers
- Doors have key-locking handles that provide security with convenient access for authorized personnel
- Removable side panels with quarter-turn key-locking latch are inset for flush appearance
- Two cable entry ports with caps and grommets on cabinet top for wiring ease
- Fan-ready top with integral finger guard. Order up to two 6-in. fans separately
- Caster- and leveler-ready open base design. Order casters and levelers separately
- Some models available with or without sides
- Welded multi-formed steel frame. The top and columns are 16 gauge; base is 14 gauge
- Multi-formed rigid doors are 14 gauge steel
- Window made of 1/8-in. smoke-tinted acrylic
- Formed solid sides are 14 gauge steel
- Rack angles are 12 gauge steel
- Ground studs provided on doors and covers
Documentation & Downloads
Specifications
Key Specifications
- Bulletin Number
- DC
- Model Code
- 19845
- Interchangeable
- False
- A in.
- 84
- C in.
- 33.98
- Description
- Communication Cabinet, Window Door
- N in.
- 77.00
- Additional Rack Angles
- Tapped 10-32
MaterialSteel
Ship Wt. Std. Pkg. (lbs)273.0
Catalog NumberNCW2168NS
B in.23.62
Rack Units43
M in.No Sides
Rack Angle Holes14.71
StandardsUL 2416 Listed (perforated, split perforated and louvered door models only) || EIA 310-D || IEC 60529, IP20 || Perforated door material meets equipment manufacturer ventilation requirements
