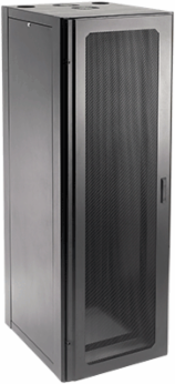

Communication and Server Cabinet 27.56 Inch Width, 43 Rack Units, Steel Construction
nVent Hoffman

nVent Hoffman NCW2178 Communication and Server Cabinet 27.56 Inch Width, 43 Rack Units, Steel Construction

  • MPN: NCW2178
  • UPC: 783510172336
  • PPN: HOF-NCW2178

CAD

$1999.85

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Net Series Communication and Server Cabinet from nVent Hoffman is a robust solution built to support and secure your critical equipment. Crafted from high-quality multi-formed steel, the cabinet features a fully perforated front and split rear doors to enhance airflow and accessibility, making it ideal for server and communication installations. Installation flexibility is a key advantage, with all doors being field-removable and reversible, and the cabinet supports 19-inch rack angles that can be adjusted for optimal equipment arrangement and cable management. Designed with practicality in mind, the open base is caster- and leveler-ready, allowing for easy mobility and leveling upon installation. Along with ground studs on the doors and covers for added safety, the incorporation of tool-less blanking panels and adjustable rack angles streamlines the set-up process, ensuring a customizable and secure workspace for your technology needs. With its UL 1863 listings confirming exceptional safety and durability, this cabinet confidently addresses the demands of modern equipment storage and organization.

Features

  • Includes two sets of adjustable L-shaped rack angles for convenient equipment mounting
  • Rack angles on communication cabinets have tapped 10-32 holes per EIA standards; Order 10-32 fasteners separately
  • Rack angles on server cabinets have square holes per EIA standards. Order fasteners and cage nuts separately
  • Rack angle settings on all 700- and 800-mm wide cabinets can accommodate either 19- or 23-in. rack spacing
  • In 600-mm wide cabinets, equipment mounted on 19-in. rack angles is centered
  • In 700- and 800-mm wide cabinets, 19-in. rack angles can be set to center equipment or to mount equipment next to the left or the right side for improved cable management
  • Rack angles infinitely positionable within the cabinet for easy adjustment to desired position
  • All doors are field removable and reversible with left or right hinging for installation flexibility
  • Communication cabinet has fully perforated or window front and louvered rear doors for equipment ventilation
  • Server cabinet has fully perforated front and split rear perforated doors for easy access to servers
  • Doors have key-locking handles that provide security with convenient access for authorized personnel
  • Removable side panels with quarter-turn key-locking latch are inset for flush appearance
  • Two cable entry ports with caps and grommets on cabinet top for wiring ease
  • Fan-ready top with integral finger guard. Order up to two 6-in. fans separately
  • Caster- and leveler-ready open base design. Order casters and levelers separately
  • Some models available with or without sides
  • Welded multi-formed steel frame. The top and columns are 16 gauge; base is 14 gauge
  • Multi-formed rigid doors are 14 gauge steel
  • Window made of 1/8-in. smoke-tinted acrylic
  • Formed solid sides are 14 gauge steel
  • Rack angles are 12 gauge steel
  • Ground studs provided on doors and covers

Documentation & Downloads

Specifications

Key Specifications

Bulletin Number
DC
Model Code
17233
Interchangeable
False
A in.
82.68
C in.
31.5
Description
Communication Cabinet, Window Door
N in.
18.65
Additional Rack Angles
NRAT217
MaterialSteel
Ship Wt. Std. Pkg. (lbs)340.0
Catalog NumberNCW2178
B in.27.56
Rack Units43
M in.77.00
Rack Angle HolesTapped 10-32
StandardsUL 2416 Listed (perforated, split perforated and louvered door models only) || EIA 310-D || IEC 60529, IP20 || Perforated door material meets equipment manufacturer ventilation requirements
