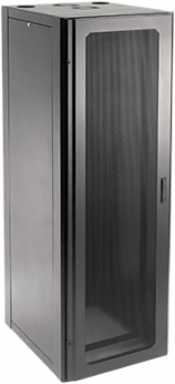

nVent Hoffman NS21610NS 43U Server Cabinet 77 Inch Height, 23.62 Inch Width, 41.85 Inch Depth
- MPN: NS21610NS
- UPC: 783510198480
- PPN: HOF-NS21610NS
CAD
$2206.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Net Series Communication and Server Cabinet from nVent Hoffman is designed with the needs of modern data management in mind. Constructed with a robust 14-gauge steel frame, it features fully perforated front and split rear doors to facilitate exceptional airflow and easy access to servers. The cabinet's versatility is enhanced by its adjustable rack angles compatible with both 19-inch and 23-inch equipment, allowing seamless customization to meet varied installation preferences. With security in mind, all doors are equipped with key-locking handles, ensuring that only authorized personnel can access critical components, while also providing convenient removable and reversible capabilities for installation flexibility. Additionally, the cabinet includes two cable entry ports for efficient wiring, making it an ideal choice for organizations seeking a reliable solution for communications and server management.
Features
- Includes two sets of adjustable L-shaped rack angles for convenient equipment mounting
- Rack angles on communication cabinets have tapped 10-32 holes per EIA standards; Order 10-32 fasteners separately
- Rack angles on server cabinets have square holes per EIA standards. Order fasteners and cage nuts separately
- Rack angle settings on all 700- and 800-mm wide cabinets can accommodate either 19- or 23-in. rack spacing
- In 600-mm wide cabinets, equipment mounted on 19-in. rack angles is centered
- In 700- and 800-mm wide cabinets, 19-in. rack angles can be set to center equipment or to mount equipment next to the left or the right side for improved cable management
- Rack angles infinitely positionable within the cabinet for easy adjustment to desired position
- All doors are field removable and reversible with left or right hinging for installation flexibility
- Communication cabinet has fully perforated or window front and louvered rear doors for equipment ventilation
- Server cabinet has fully perforated front and split rear perforated doors for easy access to servers
- Doors have key-locking handles that provide security with convenient access for authorized personnel
- Removable side panels with quarter-turn key-locking latch are inset for flush appearance
- Two cable entry ports with caps and grommets on cabinet top for wiring ease
- Fan-ready top with integral finger guard. Order up to two 6-in. fans separately
- Caster- and leveler-ready open base design. Order casters and levelers separately
- Some models available with or without sides
- Welded multi-formed steel frame. The top and columns are 16 gauge; base is 14 gauge
- Multi-formed rigid doors are 14 gauge steel
- Window made of 1/8-in. smoke-tinted acrylic
- Formed solid sides are 14 gauge steel
- Rack angles are 12 gauge steel
- Ground studs provided on doors and covers
Documentation & Downloads
Specifications
Key Specifications
- Bulletin Number
- DC
- Model Code
- 19848
- Interchangeable
- False
- A in.
- 84
- C in.
- 41.85
- Description
- Server Cabinet
- N in.
- 77.00
- Additional Rack Angles
- Square
MaterialSteel
Ship Wt. Std. Pkg. (lbs)320.0
Catalog NumberNS21610NS
B in.23.62
Rack Units43
M in.No Sides
Rack Angle Holes14.71
StandardsUL 2416 Listed (perforated, split perforated and louvered door models only) || EIA 310-D || IEC 60529, IP20 || Perforated door material meets equipment manufacturer ventilation requirements
