APC

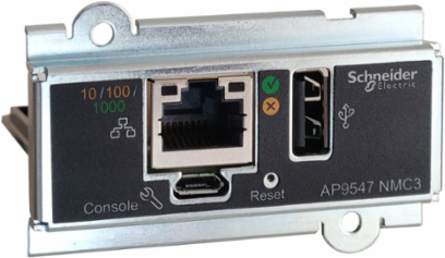

APC AP9547 NMC3 Network Management Card for Easy UPS 3S/3M/3L & Galaxy 3L/PW, 3.15 Inch Depth, 1.73 Inch Height, 0.11 lb Weight

  • MPN: AP9547
  • UPC: 731304422495
  • PPN: APC-AP9547

CAD

$502.99

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Network Management Card 3 for Easy UPS 3 Series enables essential and secure remote monitoring and management of one Easy UPS 3S, Easy UPS 3S Pro, Easy UPS 3M, Easy UPS 3L, Galaxy 3L or Galaxy PW 2nd Gen UPS, giving you mission-critical visibility. AP9547 is included with and pre-installed in all new Easy UPS 3S Pro, Easy UPS 3M, Easy UPS 3L and Galaxy 3L. AP9547 is an optional purchase for Easy UPS 3S and Galaxy PW 2nd Gen. AP9547 can be retrofitted in all supported UPSs. The high-speed processor provides a fast and powerful experience offering Gigabit Ethernet connectivity and simultaneous multiple user logins to the easy-to-use web user interface or Command Line Interface. Take proactive actions and troubleshoot easily with detailed data and event logging for timely resolution. Advanced technology and features keep sensitive data secure with the newest and best-in-class security compliance. To help reduce the connected devices exposure to cyber threats, the Secure NMC System giving access to IEC 62443-4-2 compliant NMC firmware updates, is included for the first year with the purchase of The Network Management Card. After expiration of the 1-year included Secure NMC System, the purchase of an Advantage Plan (Plus, Prime, Ultra), EcoCare membership with onsite maintenance visits for the UPS or a stand-alone onsite maintenance visit for the UPS is required to get future NMC firmware updates. Integrates with EcoStruxure IT for efficient management of your equipment, PowerChute Network Shutdown for graceful shutdown, unattended start-up and VM migration options for disaster avoidance and business continuity, and with other SNMP-enabled systems.

Features

  • Enables mission‑critical remote monitoring and management for Easy UPS 3‑Phase systems
  • Browser accessible from anywhere on a secure network
  • Real-time event notification maximizes uptime and improves efficiency
  • Take proactive actions and troubleshoot easily with detailed data and event logs
  • Stay up-to-date with an included 1-Year Secure NMC System subscription
  • Pre‑installed in new Easy UPS 3S, 3S Pro, 3M, 3L, and Galaxy 3L systems

Documentation & Downloads

Specifications

Additional

Operating Temperature Range5 to 149 F (-15 to 65 C)
Operating Humidity Range0 to 95 %
Operating Altitude Range0 to 10,000 ft
Input Phases3
AuthenticationRadius
CompatibilityEasy UPS 3S, 3M, 3L, 3S Pro, Galaxy PW 2nd generation
Depth3.15 in (8.0 cm)
Weight0.11 lb (0.05 kg)
RoHS ComplianceCompliant with Exemptions
REACHContains Substances of Very High Concern above threshold
Customs Number8504906500
Storage Temperature Range5 to 149 F (-15 to 65 C)
Storage Humidity Range0 to 95 %
Storage Altitude Range0 to 50,000 ft (0 to 15,240 m)
Communication Network Type10/100/1000BASE-T
Communication ProtocolsHTTP over secure sockets, SSH, FTP, HTTP, SNMP, DHCP, BOOTP, TCP/IP
Width2.05 in (5.2 cm)
Height1.73 in (4.4 cm)
Approval CertificationsFCC Class A, AS/NZS
Mercury FreeYes
WEEEMust be disposed per EU waste collection regulations
Carbon Footprint69 kg CO2 eq (Total Life cycle)
NMC3 Network Management Card for Easy UPS 3S/3M/3L & Galaxy 3L/PW, 3.15 Inch Depth, 1.73 Inch Height, 0.11 lb Weight
