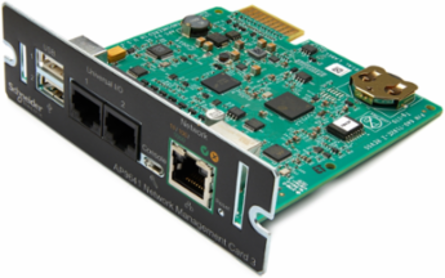

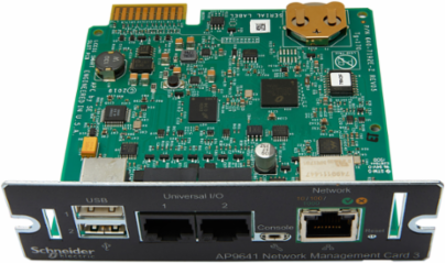

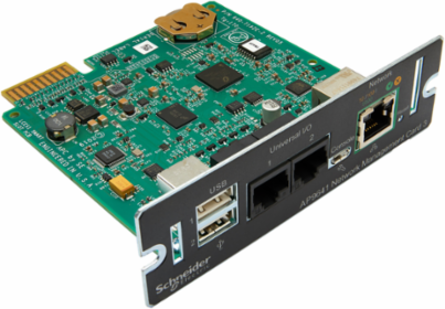

APC AP9641 Network Management Card NMC3, 1.50 Inch Height, 4.76 Inch Width, Secure Remote Management
APC AP9641 Network Management Card NMC3, 1.50 Inch Height, 4.76 Inch Width, Secure Remote Management
- MPN: AP9641
- UPC: 731304355540
- PPN: APC-AP9641
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$982.09/ EA
Features
- Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users — Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
- Multiple language support — Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
- User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only). — User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).
- Smart Battery Management Support — Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
- Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP. — Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
- BACnet/IP Support for Smart-UPS — Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS only)
- Compatible with Smart-UPS. For complete list of supported Smart-UPS, please refer to FAQ ID br /a href="https://www.apc.com/us/en/faqs/index?page=content&id=FA237786"FA237786./a — Compatible with Smart-UPS. For complete list of supported Smart-UPS, please refer to FAQ ID br /a href="https://www.apc.com/us/en/faqs/index?page=content&id=FA237786"FA237786./a
- Root of Trust Support — Supports Secure Boot with Root of Trust for enhanced Security.
- Supports faster Communication at 1 Gbps (Gigabit per second) over Network. — Supports faster Communication at 1 Gbps (Gigabit per second) over Network.
- Micro-USB based Console Support — For faster and easier Troubleshooting and Configuration.
- Command line interface — Offers simultaneous remote management access through Telnet and SSH
- Standard UPS RFC 1628 MIB Compatible — Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
- Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3 — Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
- IPv6 Support — Capable of operating on a network using IPv6 protocol
- Expandable Input and Output Ports — Supports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory
Specifications
- Weight
- 0.20 lb (0.09 kg)
- Width
- 4.76 in (12.1 cm)
- Approvals
- FCC Class A, AS/NZS 3548 (C-Tick) Class A, FCC part 15 class A, GOST, UK PSTI
- REACH
- Free of Substances of Very High Concern above threshold
Depth4.49 in (11.4 cm)
Height1.50 in (3.8 cm)
RoHSCompliant
Warranty2 years repair or replace
Downloads
