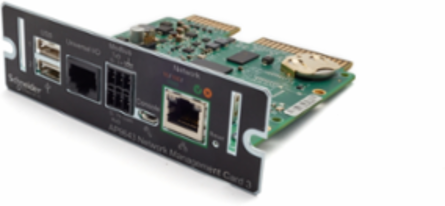

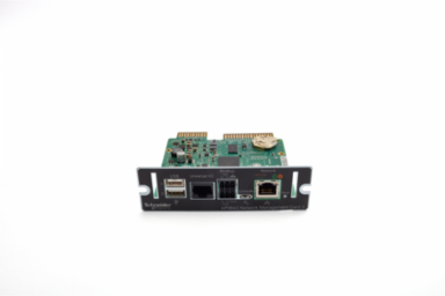

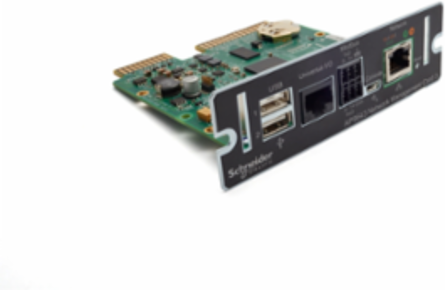

APC AP9643 NMC3 Network Management Card with Environmental Monitoring, Remote UPS Management

NMC3 Network Management Card with Environmental Monitoring, Remote UPS Management
NMC3 Network Management Card with Environmental Monitoring, Remote UPS Management
NMC3 Network Management Card with Environmental Monitoring, Remote UPS Management
  • MPN: AP9643
  • UPC: 731304403319
  • PPN: APC-AP9643

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1255.22/ EA

Features

  • Enables remote monitoring and interfaces with StruxureWare™ Data Center Expert, building management systems, or other third-party systems. — Enables remote monitoring and interfaces with StruxureWare™ Data Center Expert, building management systems, or other third-party systems.
  • Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users — Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
  • Multiple language support — Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
  • User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only). — User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).
  • Smart Battery Management Support — Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
  • Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS and Symmetra only). — Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS and Symmetra only).
  • Command line interface — Offers simultaneous remote management access through Telnet and SSH
  • Standard UPS RFC 1628 MIB Compatible — Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
  • Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3 — Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
  • IPv6 Support — Capable of operating on a network using IPv6 protocol
  • Compatible with all SmartSlot UPSs — Compatible with all SmartSlot UPSs
  • Expandable Input and Output Ports — Supports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory

Specifications

Approvals
FCC Class A, AS/NZS
Depth
4.25 in (10.8 cm)
Width
4.76 in (12.1 cm)
Toxic Heavy Metal Free
Yes
WEEE
EU waste disposal compliant
Weight0.31 lb (0.14 kg)
Height1.50 in (3.8 cm)
RoHS ComplianceCompliant
Mercury FreeYes

Downloads
