Greenlee VWS-20 Next Generation Personal Voltage Detector, 5.5 Inch, 2400VAC and Above, Audible Alert
- MPN: VWS-20
- UPC: 783310081364
- PPN: GRN-VWS-20
- UNSPSC: 41113669
CAD
$906.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Next Generation Personal Voltage Detector, 5.5 Inch, 2400VAC and Above, Audible Alert
Features
- Provides another level of safety for line crews, storm restoration workers and first responders
- Alerts user to the proximity of electric fields or energized electrical equipment with a loud alarm and bright lights

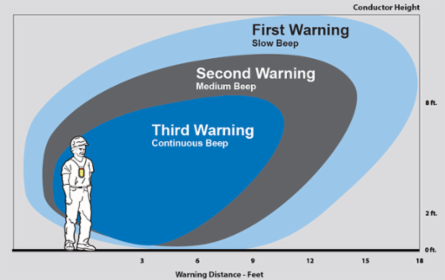

- Frequency of alarm increases as the user gets closer to the electrical hazard
- Detects voltage above 4kVAC line-to-line
- Typical initial warning distance is about 7 ft from a 4kVAC conductor
- Warning distance increases with higher voltages
- Adjustable clip for use on personal protection gear
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Type
- Personal voltage detector
- Voltage Rating
- 2400VAC and above - Do not use below 2400VAC line-to-ground
- Model
- VWS-20
- Included

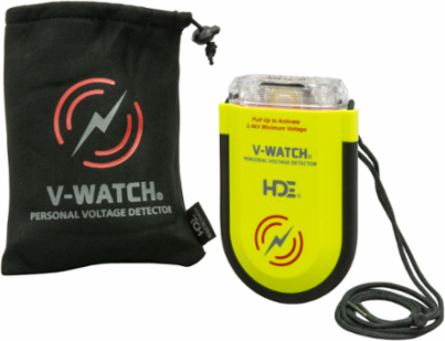

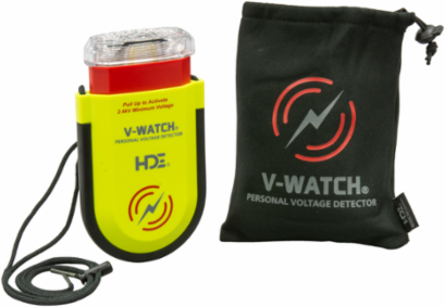

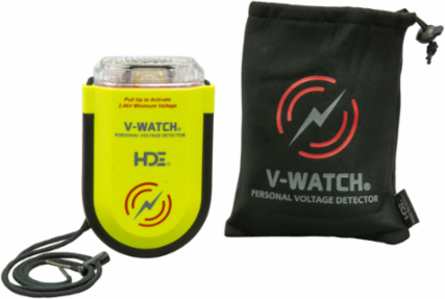

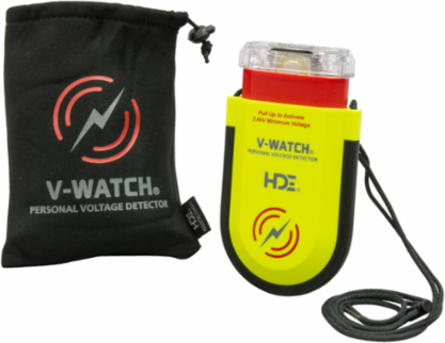

- VWS-20 Detector, VW-S-BAG Carrying Bag
Sub BrandHDE
Frequency Rating50/60Hz
Indication TypeAudible and visual alert
Overall Length5.5"
