Greenlee T200XMR-0412/K01 -0412 Contact Voltage Detector 4KV/12KV, 10 Inch, Lightweight, Audible/Visual Alerts
- MPN: T200XMR-0412/K01
- UPC: 783310066637
- PPN: GRN-T200XMR-0412/K01
- UNSPSC: 41113669
CAD
$3580.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
-0412 Contact Voltage Detector 4KV/12KV, 10 Inch, Lightweight, Audible/Visual Alerts
Features
- Direct contact solution to quickly test for the presence of voltage
- No on/off or range selector switches, always on.
- Clear indication of voltage detection with both audible and visual indications
- All Check" self test system verifies proper operation
- TAG 200X series for system voltages up to 69KV line to line

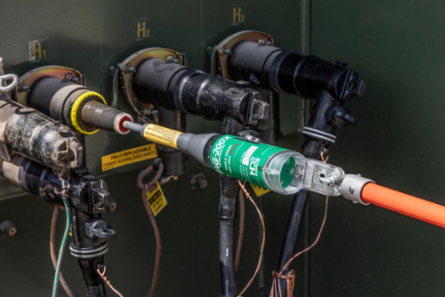

- Versitle for overhead and underground applications
- Built in universal spline and shotgun stick attachments
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Length
- 10 IN / 254 MM
- Weight
- 0.86 LB / 0.39002 KG
- Product Warranty
- 12
- Max Operating Temperature
- 120 F / 48.88889 C
- Shape
- Bottle
- Power
- DC
- Sub Brand
- Greenlee/HDE
- Frequency Rating
- 50Hz and 60Hz
- Indication Type
- Audible and visual alert
- Overall Length
- 10 in.
Width2.5 IN / 63.5 MM
Height3.7 IN / 93.98 MM
ECCNEAR99
Min Operating Temperature5 F / -15 C
ColorGreen
MaterialPlastic
Handle TypeLess Handles
TypeContact Voltage Detector
Voltage Rating4KV & 12KV Line-to-Line
ModelTAG-200XMR

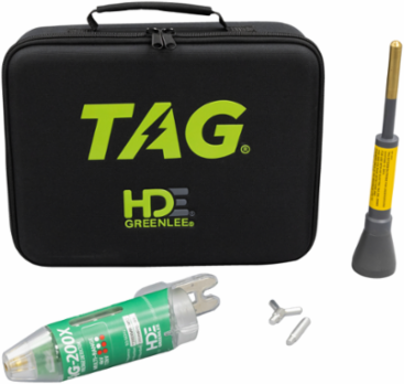

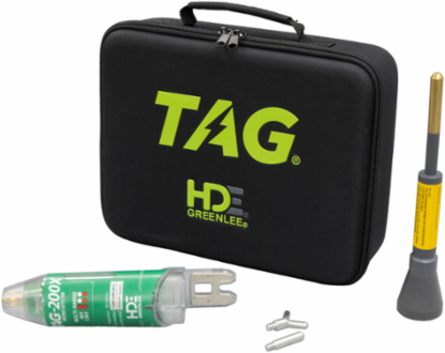

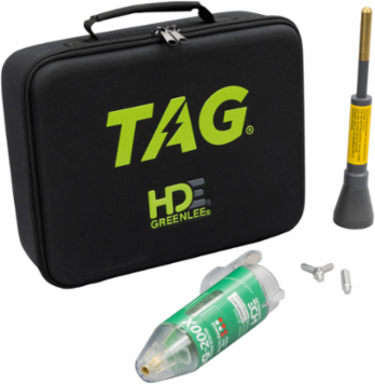

IncludedTAG-200XMR Detector, TAG-42029X Overhead "Y" Probe, TAG-41811X Overhead Straight Probe Small, IEP-UD/C Underground Bushing Probe, CS-TAG200X Carrying Case, Instruction Manual
Battery Information
- Included
- Yes 1
- Composition
- Alkaline or Lithium
- Packaging
- Batteres packed with equipment
RequiredYes
Life10 hrs. Alkaline; 16 hrs. Lithium
Advertised Voltage9
Regulations
- SDS Required
- No
- CA Prop 65 Reproductive Harm
- No
- REACH Compliant
- Yes
CA Prop 65 CancerNo
RoHS RegulationsNo
CA SCAQMDNo
